Question: Problem 3 : The pole for a power line is subjected to the two cable forces of 6 0 lb , each force lying in

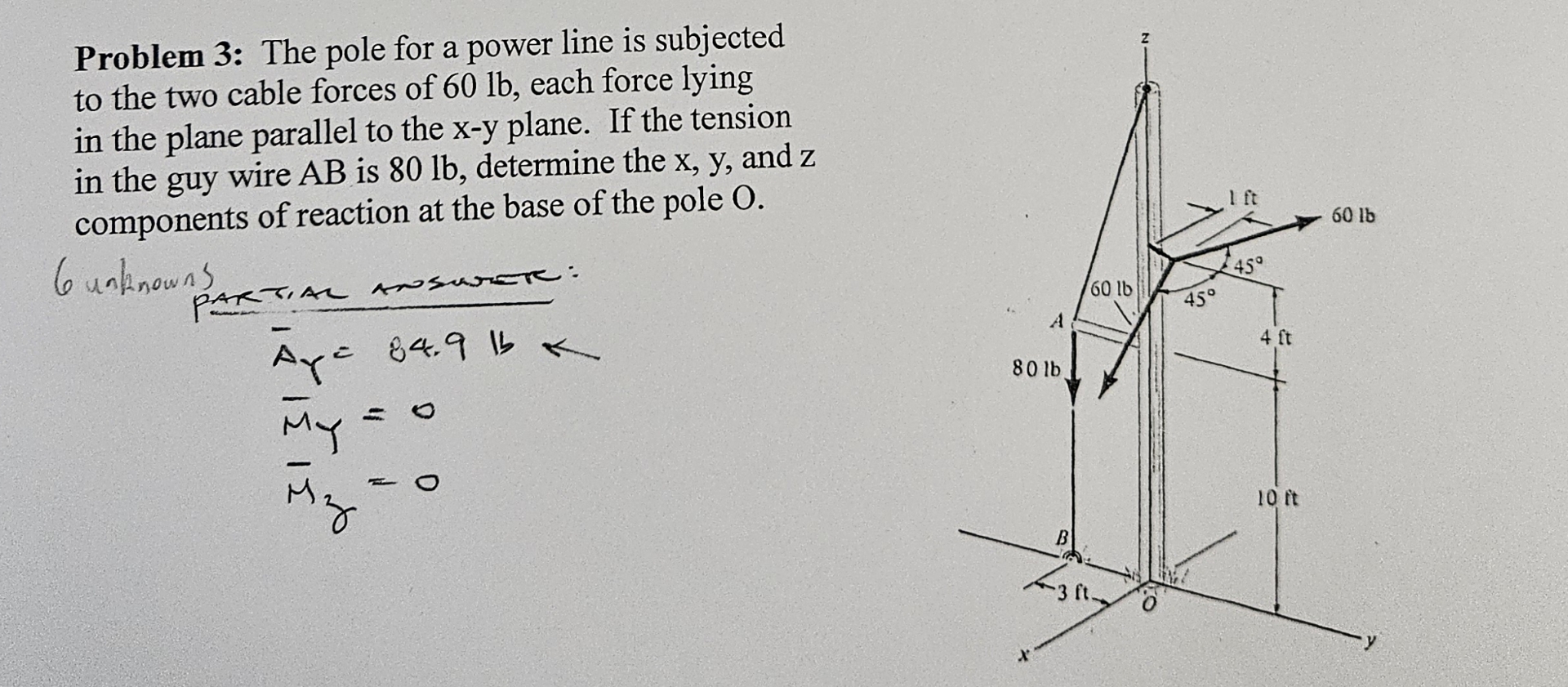

Problem 3: The pole for a power line is subjected to the two cable forces of 60 lb , each force lying in the plane parallel to the x-y plane. If the tension in the guy wire AB is 80 lb , determine the x,y, and z components of reaction at the base of the pole O .
partial answer Ay=84.9 lb
My=0
Mx=0
Problem 3 : The pole for a power line is
