Question: Questions A semicircular gate is hinged at B . A horizontal force, P , is holding the gate in place. Where is the location of

Questions

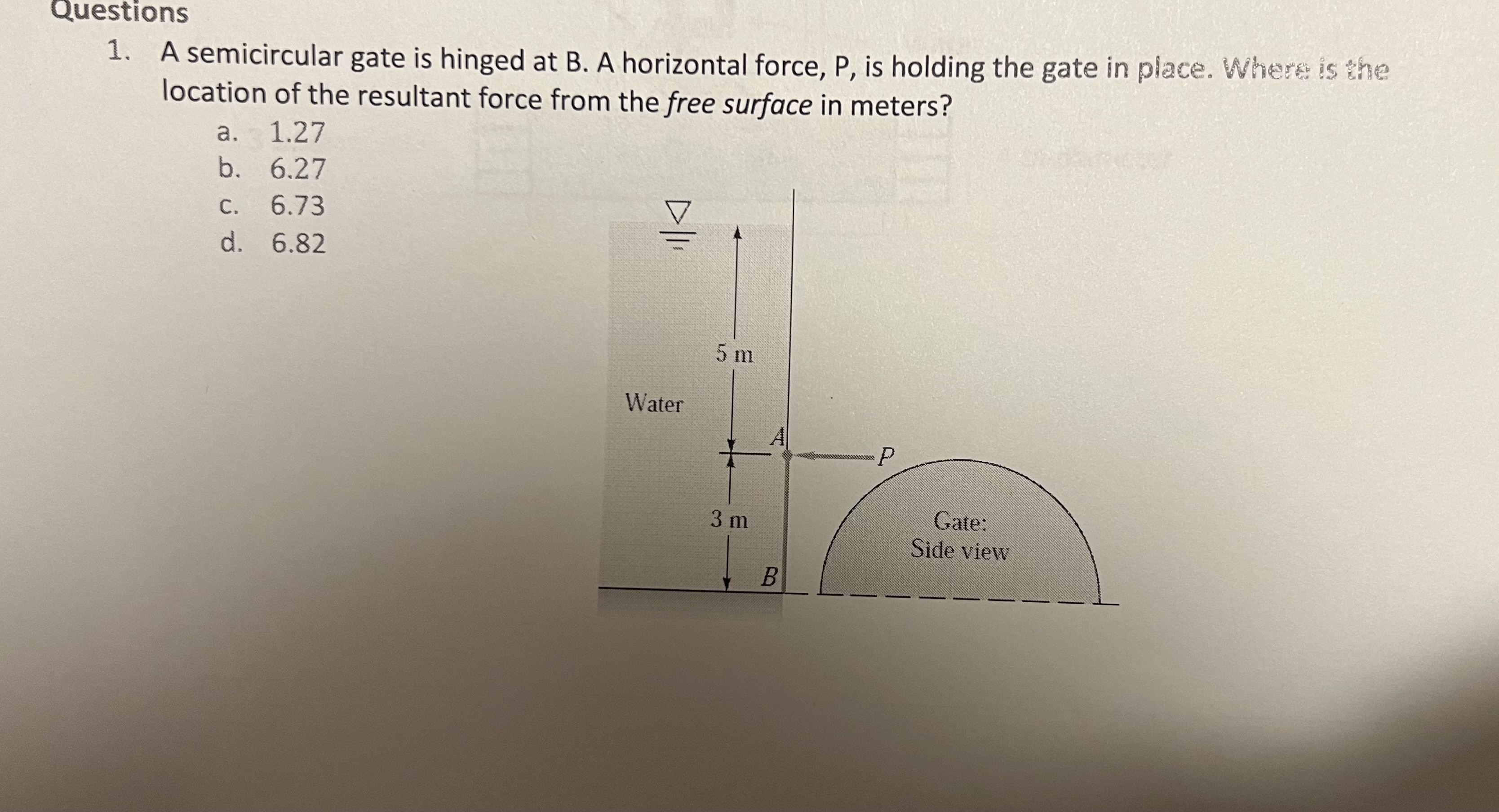

A semicircular gate is hinged at B. A horizontal force, P, is holding the gate in place. Where is the location of the resultant force from the free surface in meters?
Questions A semicircular gate is hinged at B . A

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

4) A gate 5 ft wide is hinged at point B and rests against a smooth wall at point A. Compute a) the force on the gate due to the seawater pressure; b) the horizontal force P exerted by the wall at...

Q:

The isosceles triangular gate A B in the figure below is hinged at point A . The pressure at the liquid surface and outside the gate is atmospheric. If the mass of the gate is 2 5 kg , a . Calculate...

Q:

answer given show how found 3. Gate AB is semi-circular, hinged at point B, and held by a horizontal force P at point A. Determine the required force P for equilibrium. 799.2kN HINT: Centroid of a...

Q:

Please help...thank you! PART A - MULTIPLE CHOICE QUESTIONS 1. Real GDP is nominal GDP adjusted for: A) double counting. B) changes in prices. C) population. D) imports. 2. What do a rubbernecking...

Q:

The figure below shows a semiellipse of half-length a and height b. Both the x- and y-axes pass through the semiellipse's centroid C. The x-axis is parallel to the base, whereas the y-axis coincides...

Q:

Water ( = 1 0 0 0 k g m 3 ) is contained behind a semi - circular gate, A B with a radius of R = 2 . 0 m and width into the page is 5 m . The gate is hinged at point A . Neglect the weight of the...

Q:

Q2. The gate AB in a reservoir wall holds back a body of water as shown in Figure 1 below. The gate is square, has a mass of 300 kg and is hinged about a horizontal axis perpendicular to the page and...

Q:

Determine the force P needed to hold the 1 3 - m - wide gate in theIn the supply system ( Q = 0 . 8 9 c f s ) shown in the figure, the pressure required at the delivery end is 6 5 . Consider the...

Q:

Gate AB in Fig P2.65 is semicircular, hinged at B, and held by a horizontal force P at point A. Determine the required force P for equilibrium. 5 m Water 3 m Gate: Side view

Q:

QUESTUN 2 A rectangular gate AB is hinged along B and held by horizontal force FA applied at A. The liquid to the left of the gate is water. The gate width is 15 ft. L=7ft and H = 30 ft. Calculate...
