Question: Problem # 4 ( 5 Points ) A . For the truss shown solve for the reactions at A ( pin ) and F (

Problem #4(5 Points)
A. For the truss shown solve for the reactions at A (pin) and F (Roller)-3 Points
B. Identify zero-force members, if any -2 Points

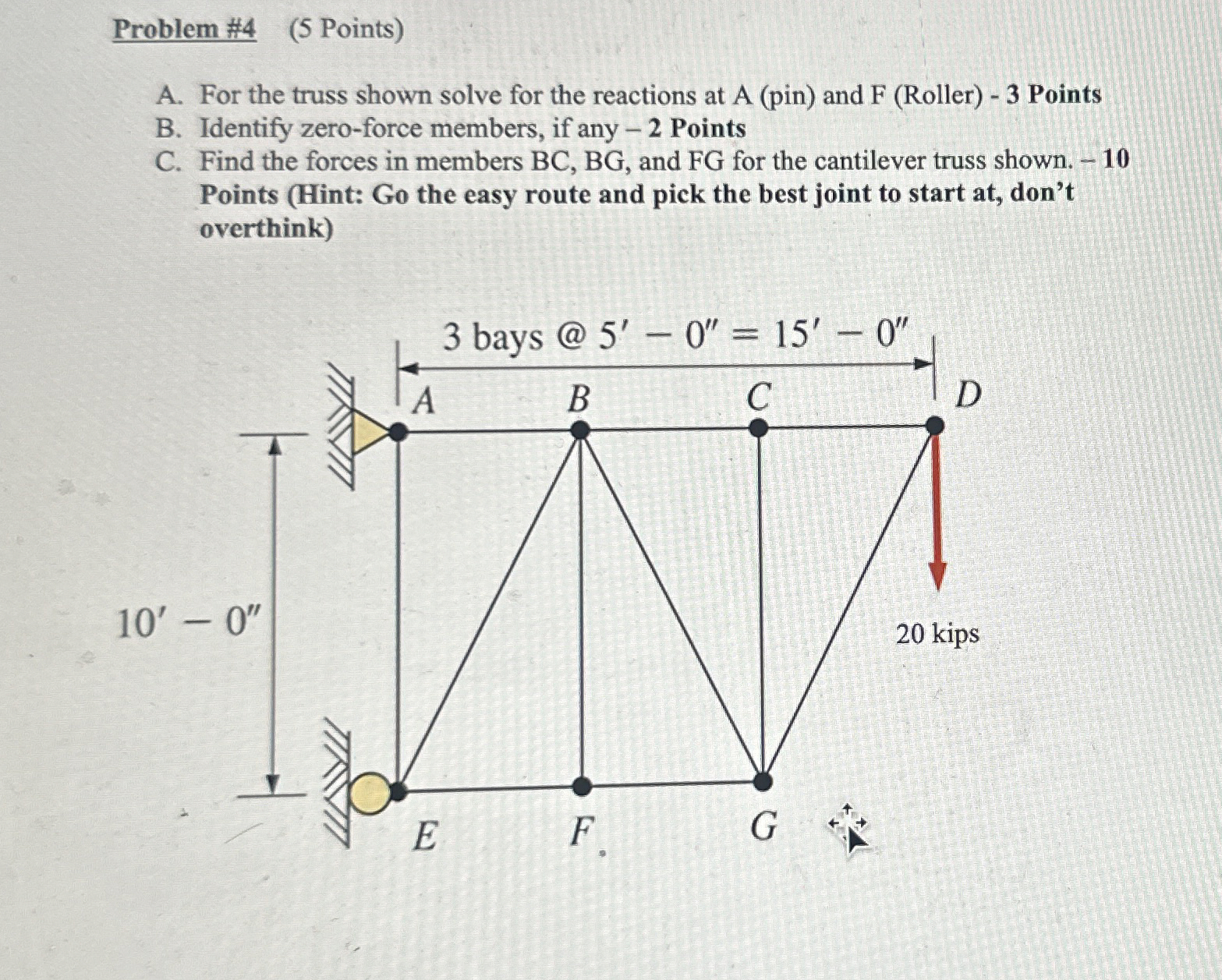

C. Find the forces in members BC, BG, and FG for the cantilever truss shown. -10 Points (Hint: Go the easy route and pick the best joint to start at, don't overthink)
Problem # 4 ( 5 Points ) A . For the truss shown

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
