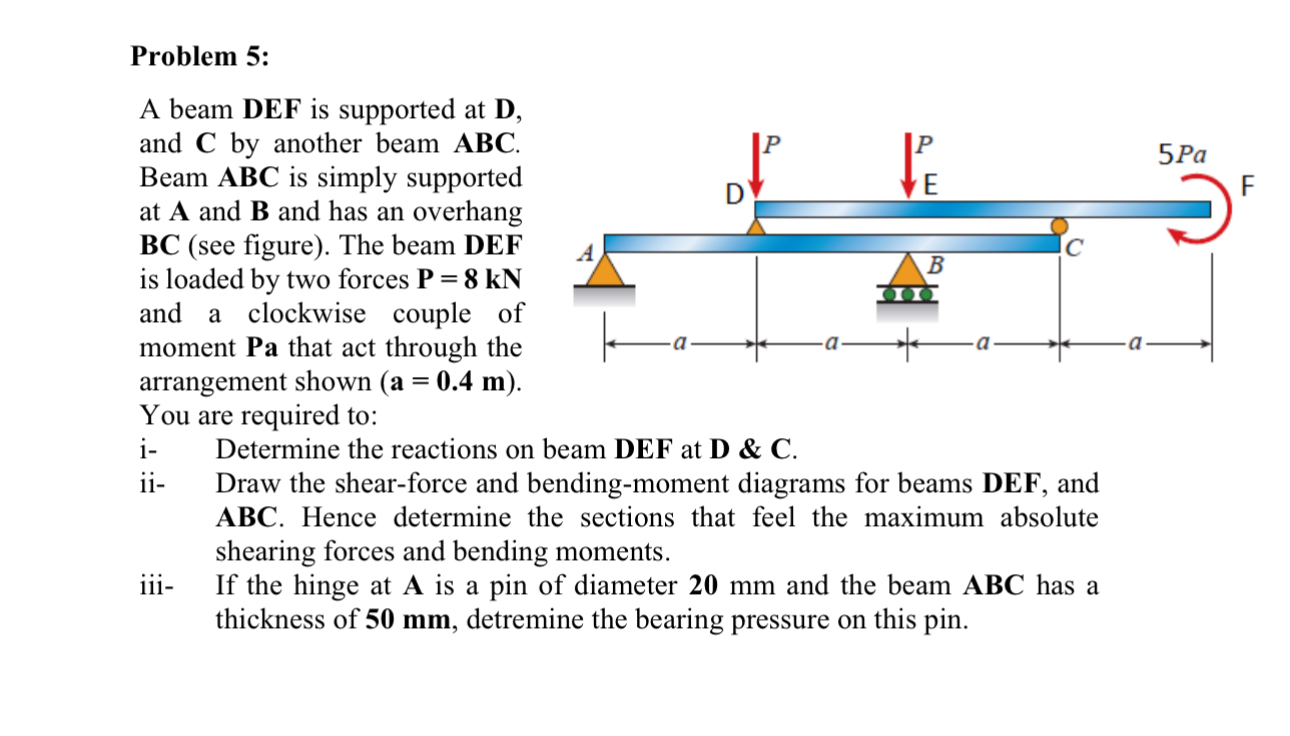

Problem $5$:

A beam DEF is supported at $D,$

and $C$ by another beam ABC.

Beam ABC is simply supported

at A and $B$ and has an overhang

BC $($see figure$).$ The beam DEF

is loaded by two forces $P=8kN$

and a clockwise couple of

moment Pa that act through the

arrangement shown
