Question: Problem 5 : If disk D has a constant angular velocity D = 2 r a d s , determine the angular velocity of Disk

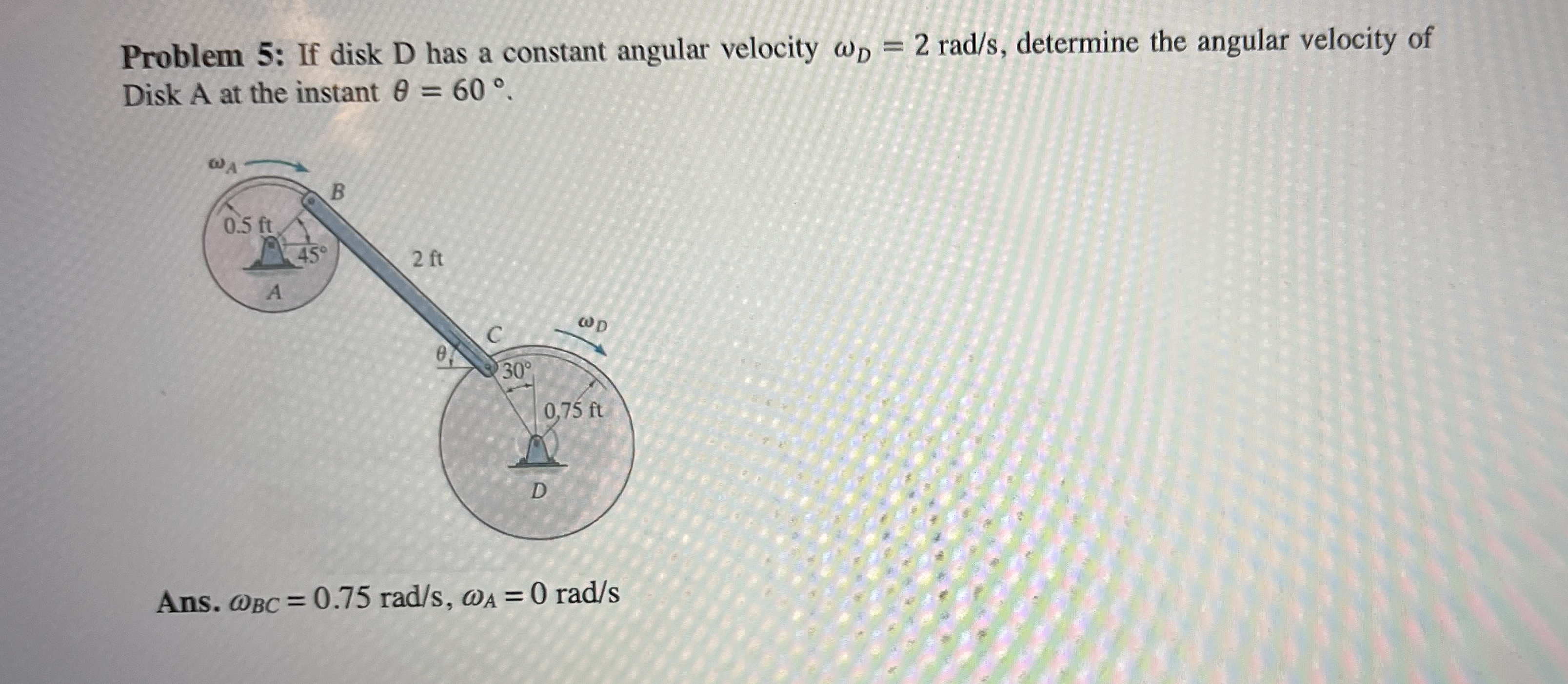

Problem 5: If disk D has a constant angular velocity D=2rads, determine the angular velocity of Disk A at the instant =60.
Ans. BC=0.75rads,A=0rads
Problem 5 : If disk D has a constant angular

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
