Question: Problem 5 of 5 ( 1 5 points ) Given: The truss shown below is supported at A by a roller and at E by

Problem 5 of 5(15 points)
Given:

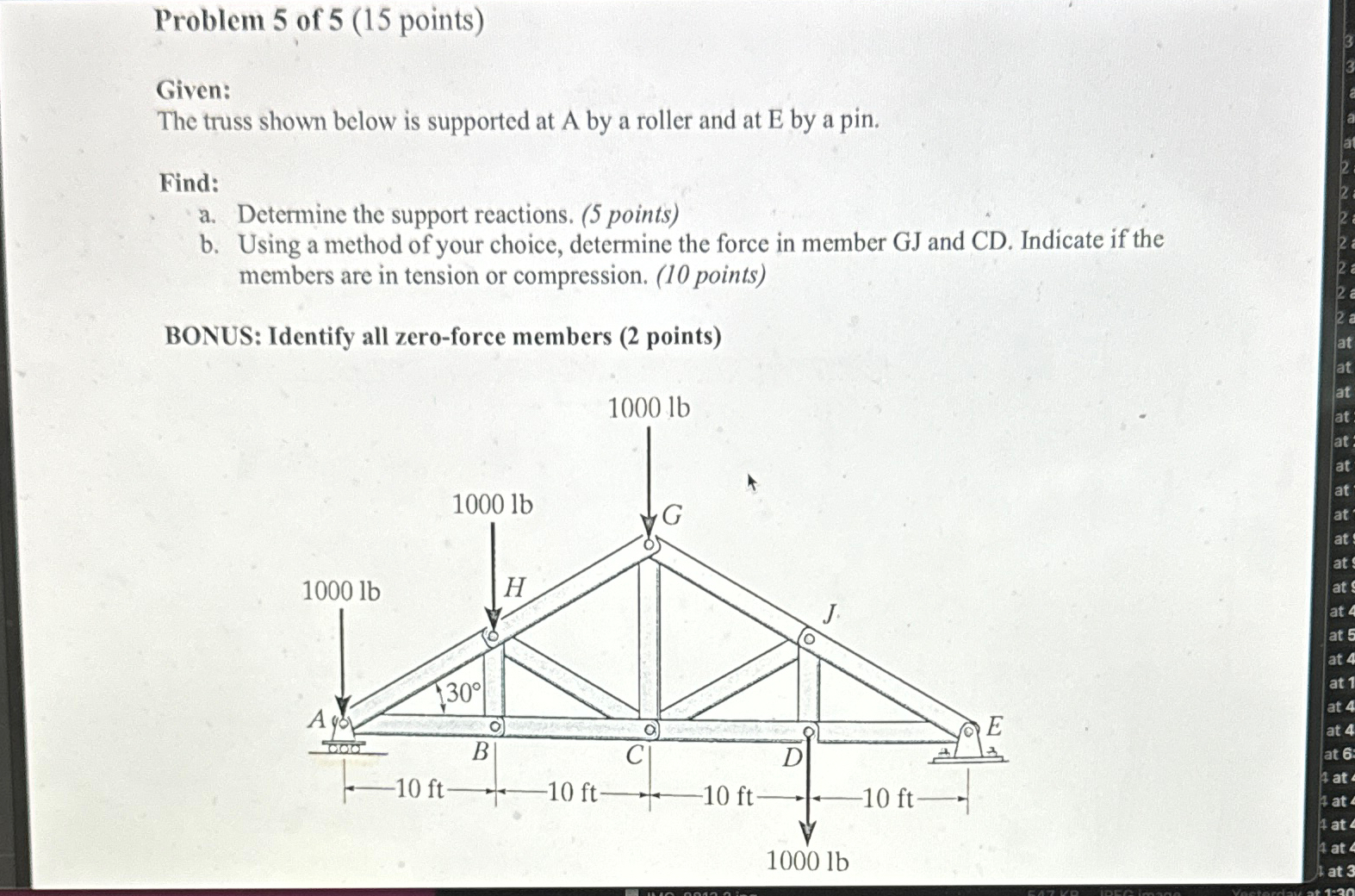

The truss shown below is supported at A by a roller and at E by a pin.
Find:
a. Determine the support reactions. (5 points)
b. Using a method of your choice, determine the force in member GJ and CD. Indicate if the members are in tension or compression. (10 points)
BONUS: Identify all zero-force members (2 points)
