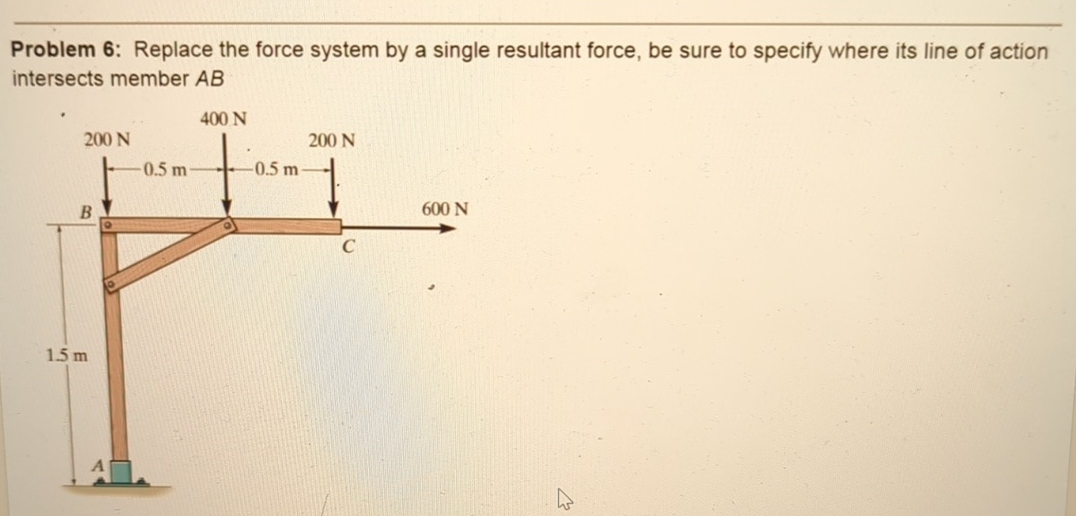

Question: Problem 6 : Replace the force system by a single resultant force, be sure to specify where its line of action intersects member A B

Problem 6: Replace the force system by a single resultant force, be sure to specify where its line of action
intersects member AB
Problem 6 : Replace the force system by a single

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
