Question: Question 2 : The structure shown is a symmetrical truss with a span of 2 4 meters, divided into six panels of 4 meters each.

Question 2:

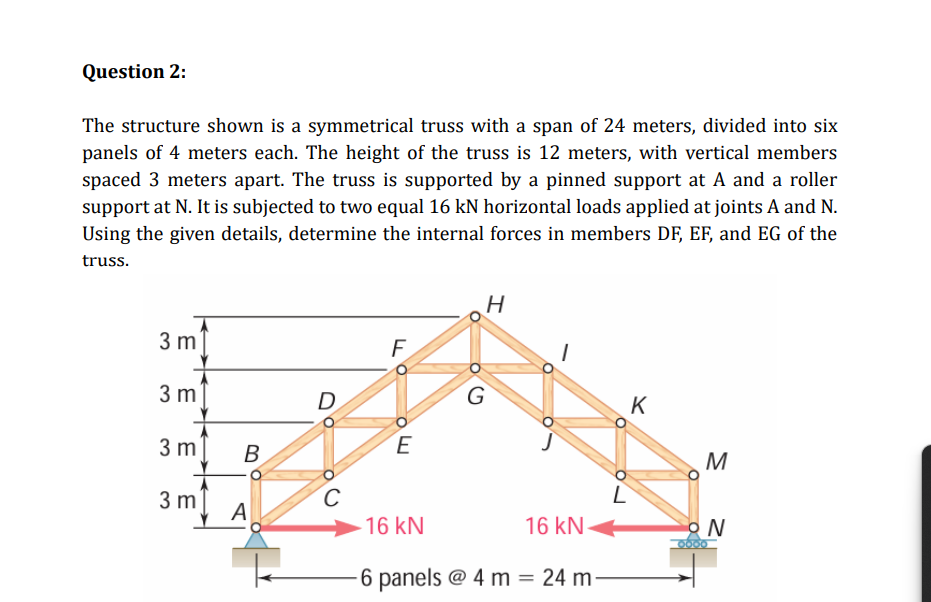

The structure shown is a symmetrical truss with a span of 24 meters, divided into six panels of 4 meters each. The height of the truss is 12 meters, with vertical members spaced 3 meters apart. The truss is supported by a pinned support at A and a roller support at N . It is subjected to two equal 16 kN horizontal loads applied at joints A and N . Using the given details, determine the internal forces in members DF, EF, and EG of the truss.
Question 2 : The structure shown is a symmetrical

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
