Question: Problem 7 : Figure 7 shows a planetary gear train used in a machine, for which the sun gear is the input and it is

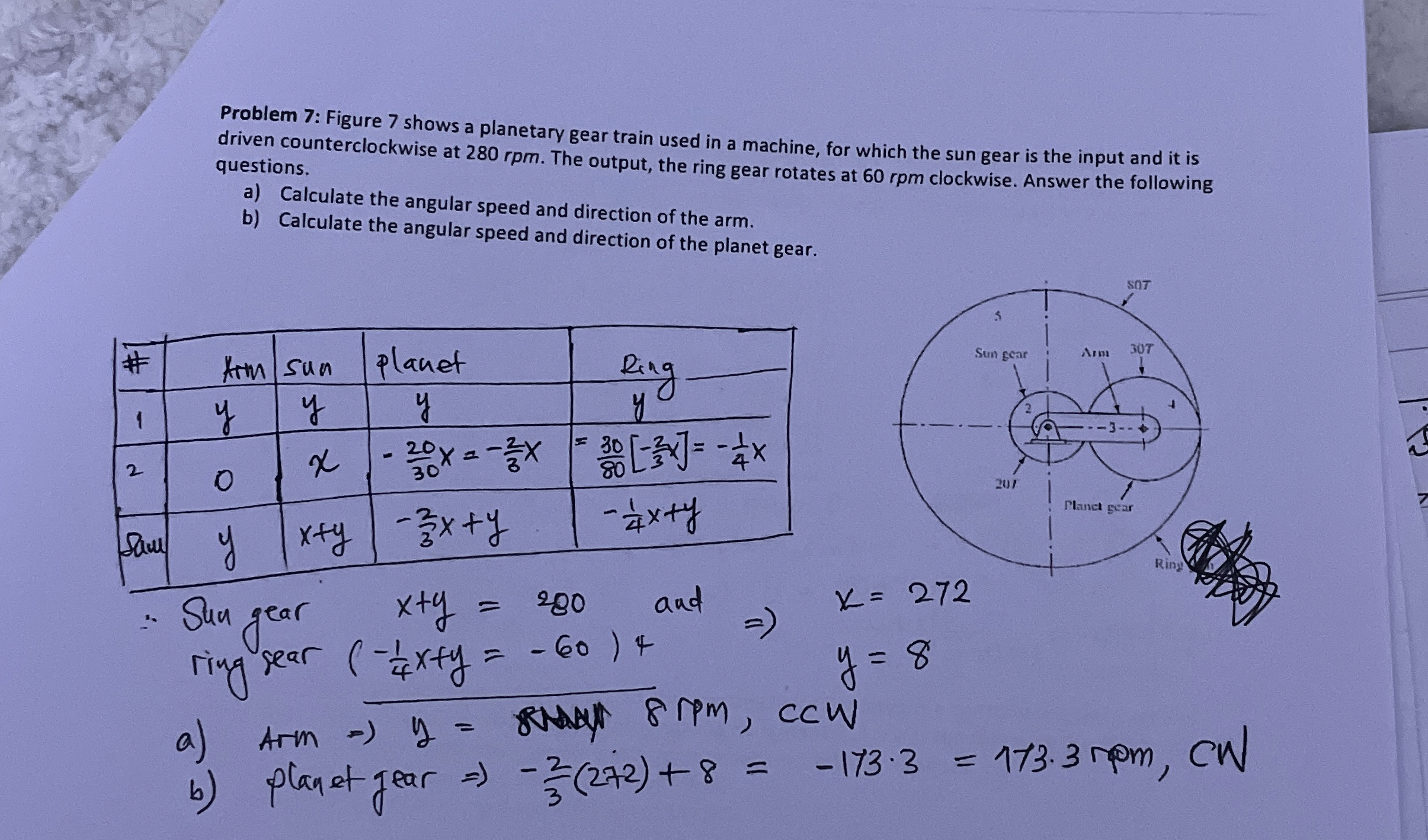

Problem 7: Figure 7 shows a planetary gear train used in a machine, for which the sun gear is the input and it is driven counterclockwise at 280 rpm . The output, the ring gear rotates at 60 rpm clockwise. Answer the following questions.
a) Calculate the angular speed and direction of the arm.
b) Calculate the angular speed and direction of
the planet gear.
\table[[#,Anin,sun,planet,Ring],[1,y,y,y,y
Please clear explination !
Problem 7 : Figure 7 shows a planetary gear train

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
