Question: Problem 8 Three different situations are shown where a current - carrying wire passes through a region of uniform magnetic field. By relocating the appropriate

Problem

8

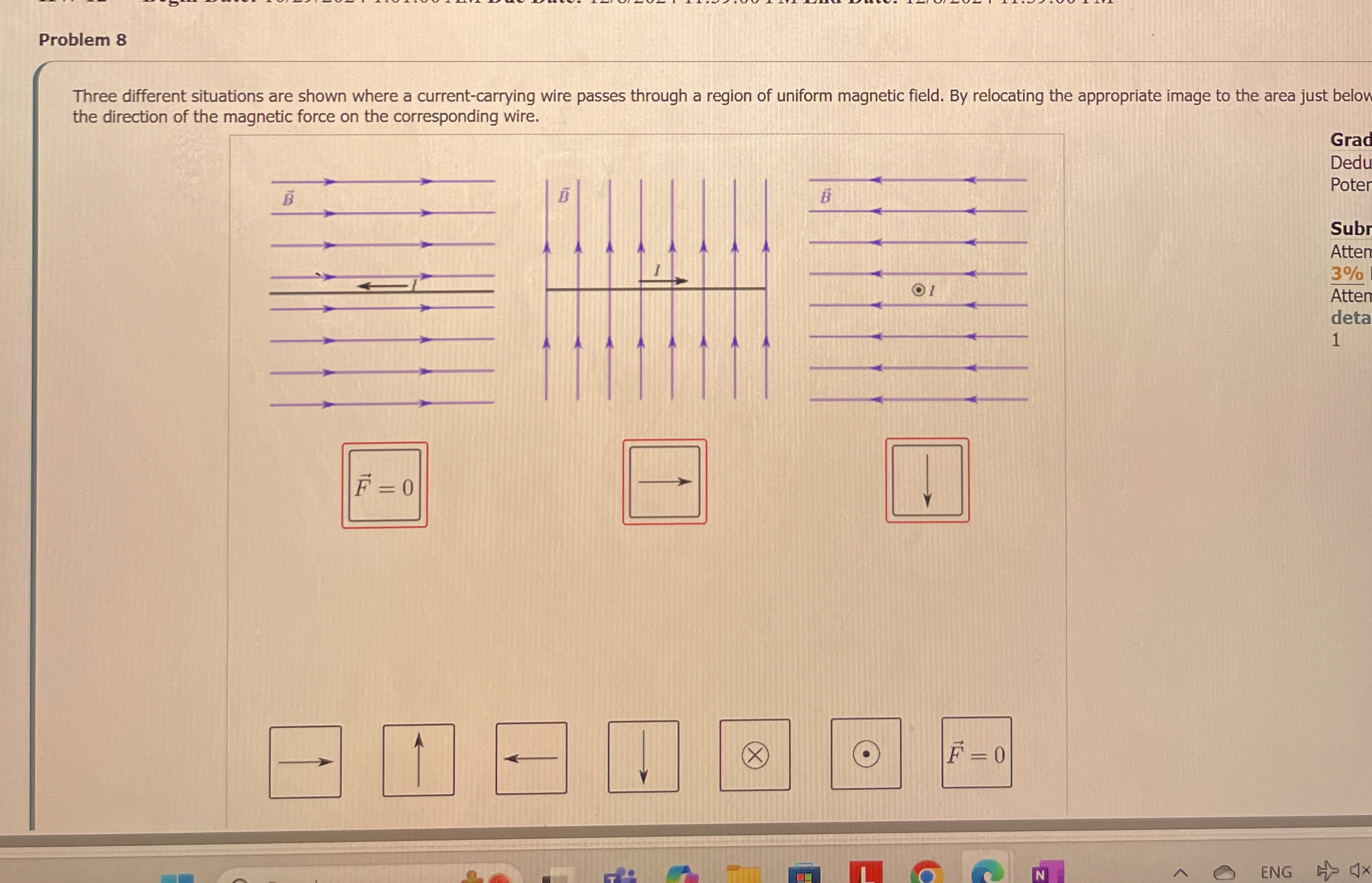

Three different situations are shown where a current

-

carrying wire passes through a region of uniform magnetic field. By relocating the appropriate image to the area just belou the direction of the magnetic force on the corresponding wire.

Grad

Dedu

Poter

Subr

Atten

3 %

Atten

deta

1

Problem 8 Three different situations are shown

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
