Question: Problem ( Ch . 1 9 , Project Management ) Consider the project with the following dependency matrix. a ) Draw an activity network diagram

Problem (Ch.19, Project Management)

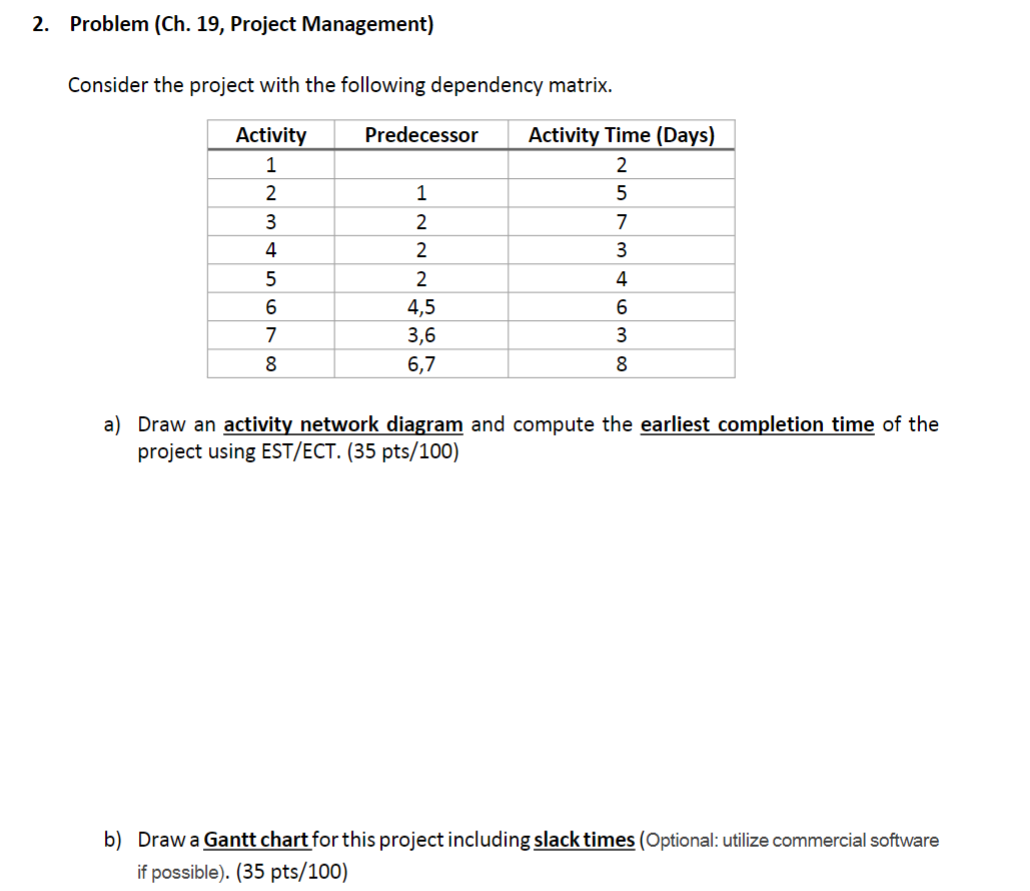

Consider the project with the following dependency matrix.
a) Draw an activity network diagram and compute the earliest completion time of the
project using EST/ECT.
b) Draw a Gantt chart for this project including slack times.
Problem (Ch.19, Project Management) Consider the project with the following dependency

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
