Question: Problems for Article 5 / 3 Link OA rotates with a clockwise angular velocity = 7 r a d s e c . Determine the

Problems for Article 5/3

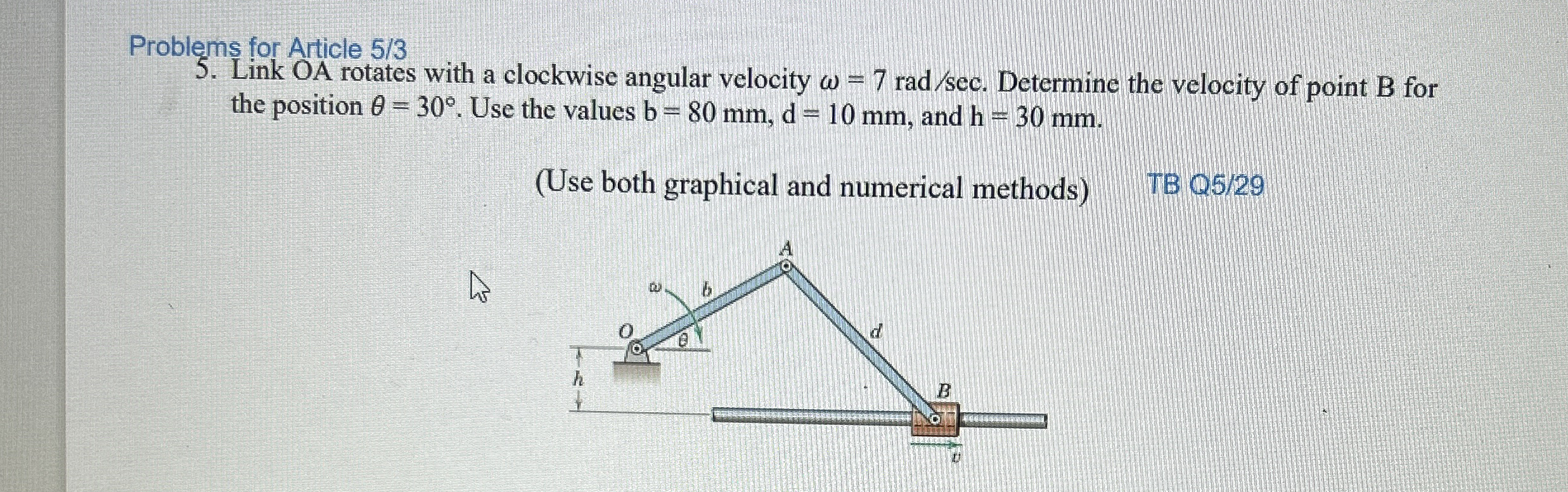

Link OA rotates with a clockwise angular velocity =7radsec. Determine the velocity of point B for
the position =30. Use the values b=80mm,d=10mm, and h=30mm.
(Use both graphical and numerical methods)
TB Q5/29
Problems for Article 5 / 3 Link OA rotates with a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Link OA rotates with a clockwise angular velocity = 7 rad/s. Determine the velocity of point B for the position = 30. Use the values b = 80 mm, d = 100 mm, and h = 30 mm. A d h B
