Question: [PROCESS CONTROL] The following block diagram on a controlled process system using PROPORTIONAL CONTROLLER (P- Controller) D(s) 1/(0,45+1) Ysp(s) Y(s) Kc 1/(0,55+1) 1/(0,45+1) 1/(0,15+1) Question:

[PROCESS CONTROL] The following block diagram on a controlled process system

[PROCESS CONTROL]

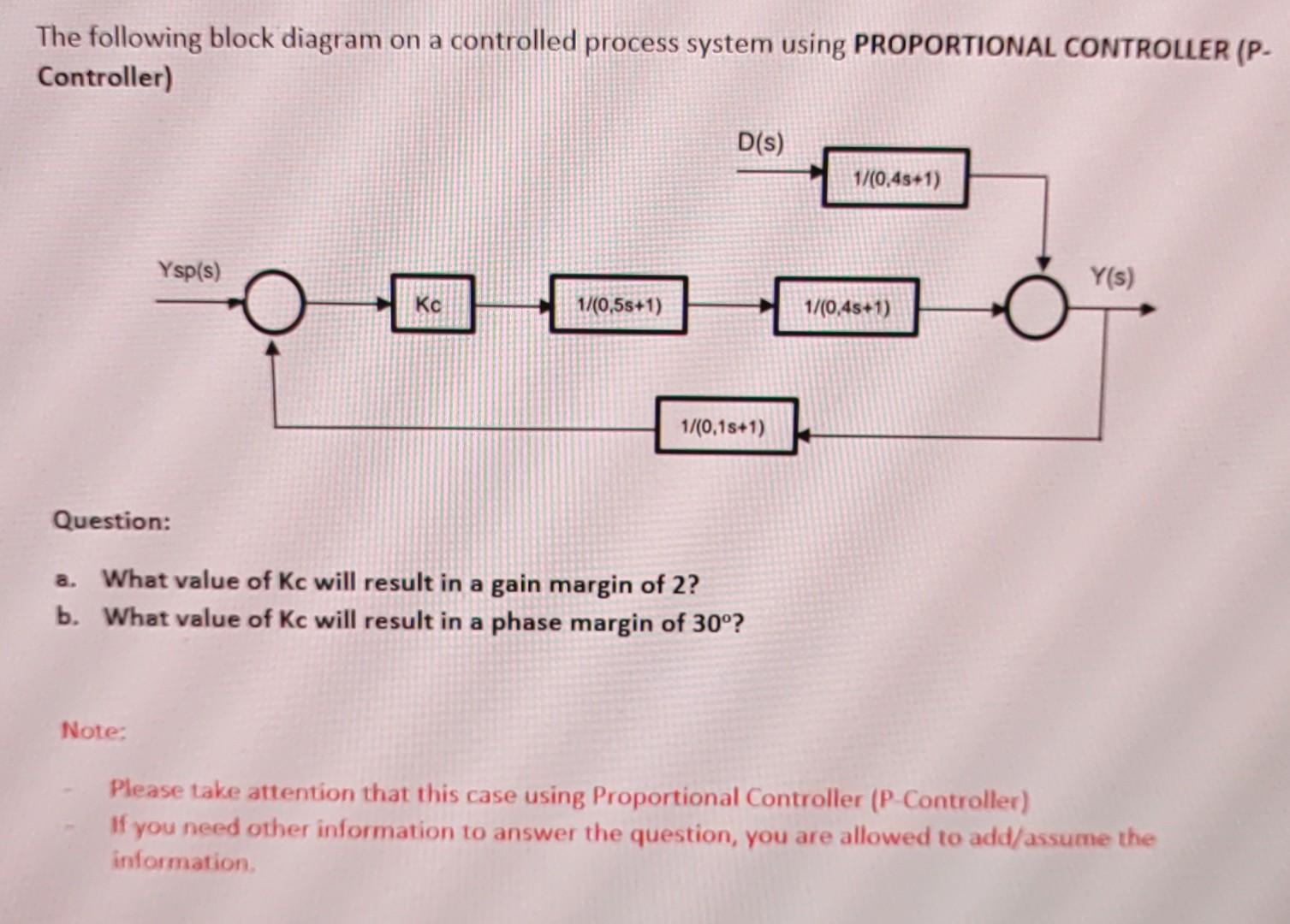

The following block diagram on a controlled process system using PROPORTIONAL CONTROLLER (P- Controller) D(s) 1/(0,45+1) Ysp(s) Y(s) Kc 1/(0,55+1) 1/(0,45+1) 1/(0,15+1) Question: a. What value of Kc will result in a gain margin of 2? b. What value of Kc will result in a phase margin of 30? Note: Please take attention that this case using Proportional Controller (P Controller) If you need other information to answer the question, you are allowed to add/assume the information

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
