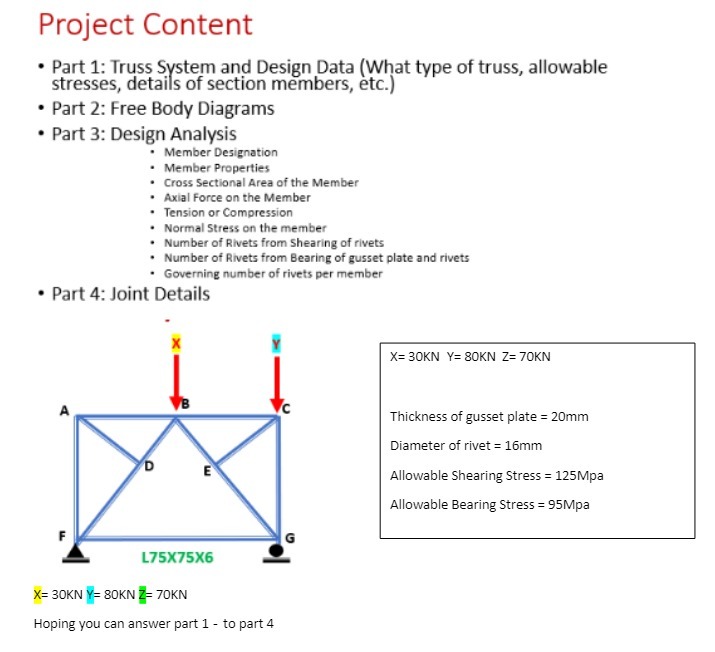

Project Content . Part 1: Truss System and Design Data (What type of truss, allowable stresses, details of section members, etc.) . Part 2: Free Body Diagrams . Part 3: Design Analysis Member Designation Member Properties Cross Sectional Area of the Member Axial Force on the Member Tension or Compression Normal Stress on the member Number of Rivets from Shearing of rivets Number of Rivets from Bearing of gusset plate and rivets Governing number of rivets per member . Part 4: Joint Details X=30KN Y= 80KN Z=70KN Thickness of gusset plate = 20mm Diameter of rivet = 16mm E Allowable Shearing Stress = 125Mpa Allowable Bearing Stress = 95Mpa G L75X75X6 X= 30KN Y= 80KN = 70KN Hoping you can answer part 1 - to part 4
