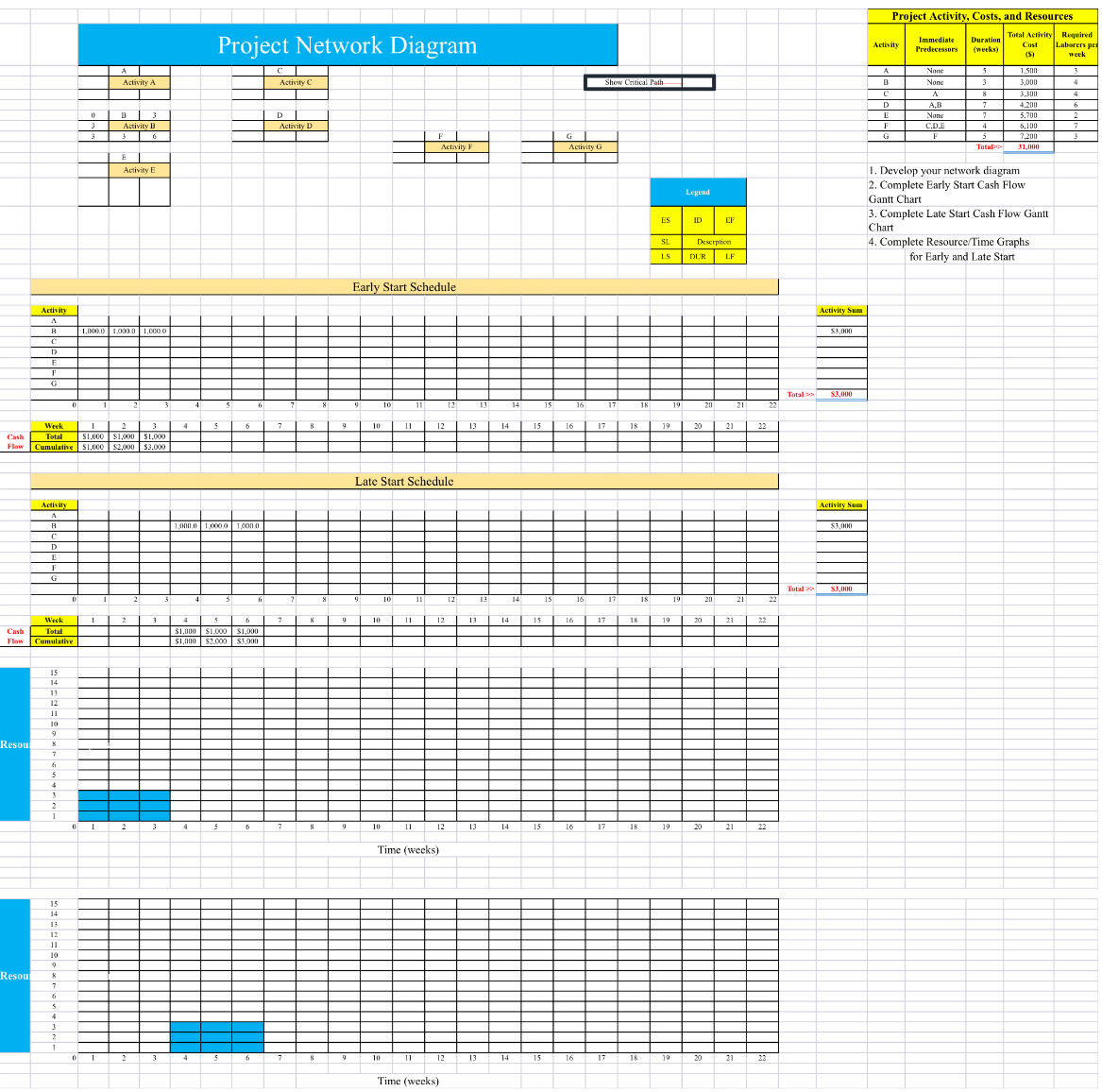

Project Network Diagram

Early Start Schedule

$\backslash$table$[[,$Week,$1,2,3,4,5,6,7,$B$,9,10,11,12,13,14,15,16,17,18,19,20,21,22],[$Cash$,$Total,$51,000,$$$1,000,$$$1,000,,,,,,,,,,,,,,,,,,,],[$Flow$,$Cumulative,$$1,000,$$$2,000,$$$3,000,,,,,,,,,,,,,,,,,,,]]$

Late Start Schedule

$\backslash$table$[[$Project Activity, Costs, and Resources$],[$Activity$,\backslash$table$[[$Immediate$],[$Predecessors$]],\backslash$table$[[$Duration$],[($neeths$)]],\backslash$table$[[$Total Activity$],[$Cost$],[($$$)]],\backslash$table$[[$Reguired$],[$Laborers pes$],[$week$]]],[$A$,$None,$5,1\mathrm{.}500,3],[$B$,$None,$3,3,000,4],[$C$,$A$,8,3,500,4],[$D$,A,B,7,4,200,6],[$E$,$None,$7,5,700,2],[F,C,D,E,4,6,100,7],[$G$,F,5,7,200,3],[,,$Total:$-,31,000,]]$

Develop your network diagram

Complete Early Start Cash Flow Gantt Chart

Complete Late Start Cash Flow Gantt Chart

Complete Resource$/$Time Graphs for Early and Late Start
