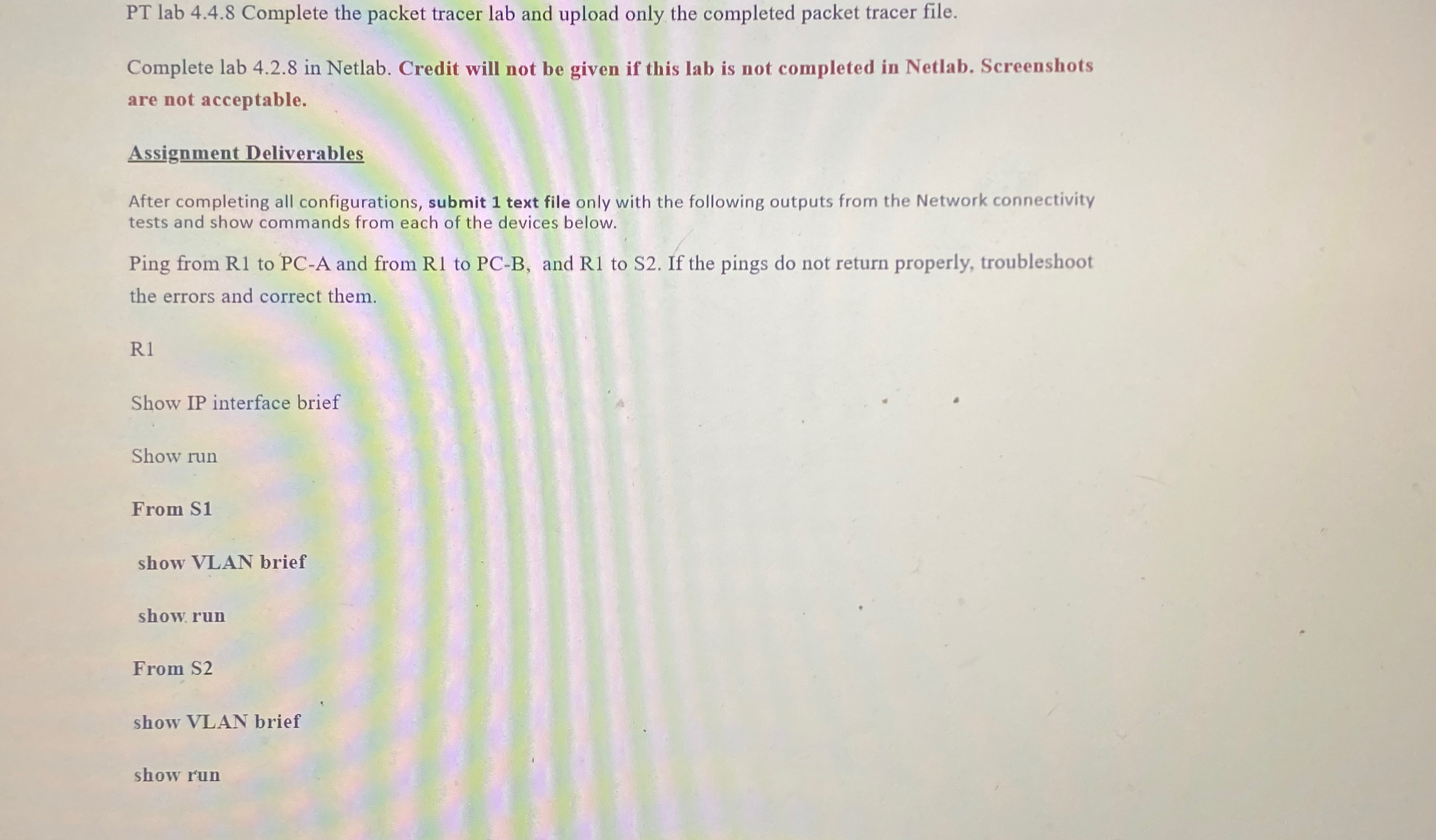

PT lab $4\mathrm{.}4\mathrm{.}8$ Complete the packet tracer lab and upload only the completed packet tracer file.

Complete lab $4\mathrm{.}2\mathrm{.}8$ in Netlab. Credit will not be given if this lab is not completed in Netlab. Screenshots are not acceptable.

Assignment Deliverables

After completing all configurations, submit $1$ text file only with the following outputs from the Network connectivity tests and show commands from each of the devices below.

Ping from R$1$ to PC$-$A and from R$1$ to PC$-$B$,$ and R$1$ to S$2.$ If the pings do not return properly, troubleshoot the errors and correct them.

R$1$

Show IP interface brief

Show run

From S$1$

show VLAN brief

show run

From S$2$

show VLAN brief

show run
