Question: Q 1 - 2 : Based upon the two cables anchored to the eye bolt shown below with the forces F 1 applied as shown,

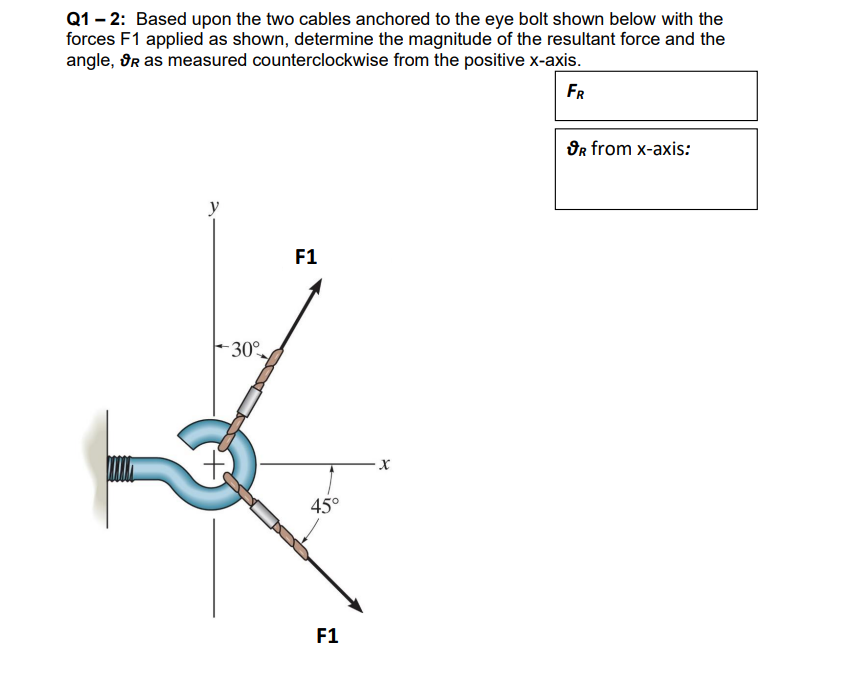

Q1-2: Based upon the two cables anchored to the eye bolt shown below with the
forces F1 applied as shown, determine the magnitude of the resultant force and the
angle, varR as measured counterclockwise from the positive x -axis.
Q 1 - 2 : Based upon the two cables anchored to

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
