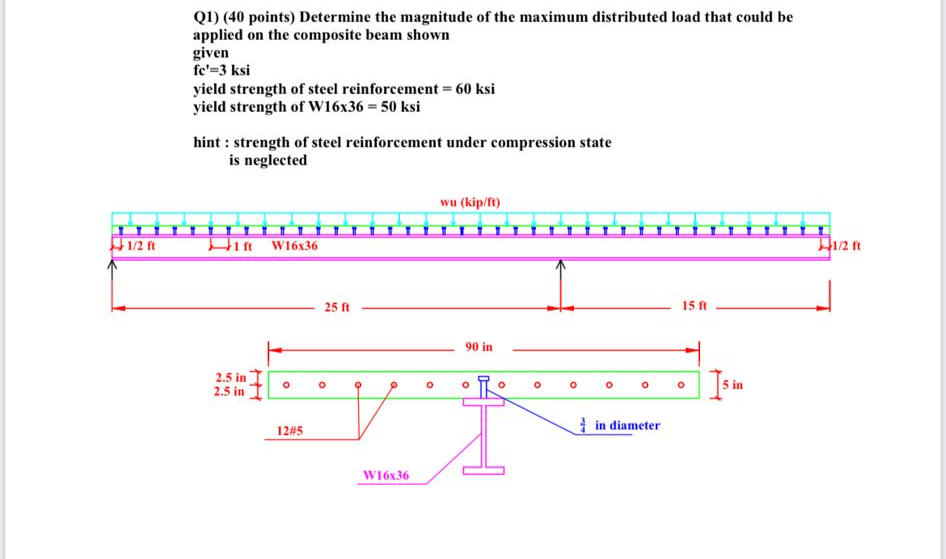

Question: Q 1 ) ( 4 0 points ) Determine the magnitude of the maximum distributed load that could be applied on the composite beam shown

Q1)(40 points) Determine the magnitude of the maximum distributed load that could be applied on the composite beam shown
given
fc'=3ksi
yield strength of steel reinforcement =60ksi
yield strength of W1636=50ksi
hint : strength of steel reinforcement under compression state is neglected
Q 1 ) ( 4 0 points ) Determine the magnitude of

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
