Question: Q 1 - A 5 . 2 m , span simply supported beam has a clear span of 4 . 9 m and carries uniformly

1 -

5.2 m,

span simply supported beam has a clear span of

4.9 m

and carries uniformly distributed dead and live loads of

65.7 k \frac{N}{m}

and

54.75 k \frac{N}{m},

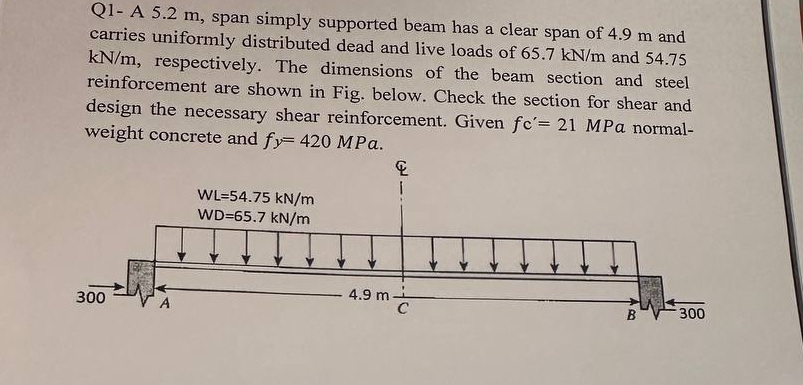

respectively. The dimensions of the beam section and steel reinforcement are shown in Fig. below. Check the section for shear and design the necessary shear reinforcement. Given

f^{'} = 21

MPa normalweight concrete and

f_{y} = 420

MPa.

Q 1 - A 5 . 2 m , span simply supported beam has

Step by Step Solution
