Question: Q 1 ) Use the virtual work method to determine the deformations ( slope and deflection ) at point D considering only bending deformation. E

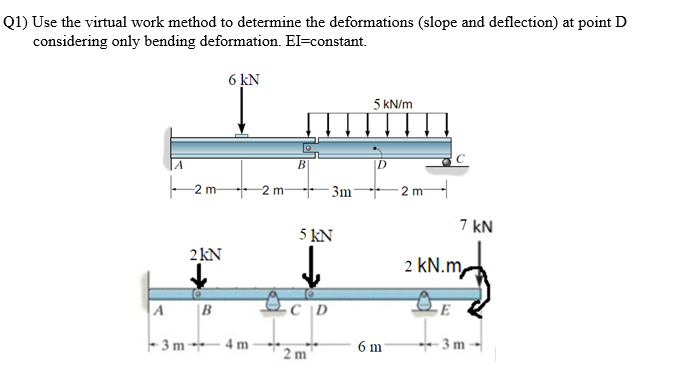

Q1) Use the virtual work method to determine the deformations (slope and deflection) at point D
considering only bending deformation. EI= constant.
Q 1 ) Use the virtual work method to determine

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
