Q$1$ Weight: $10\mathrm{.}00\%$

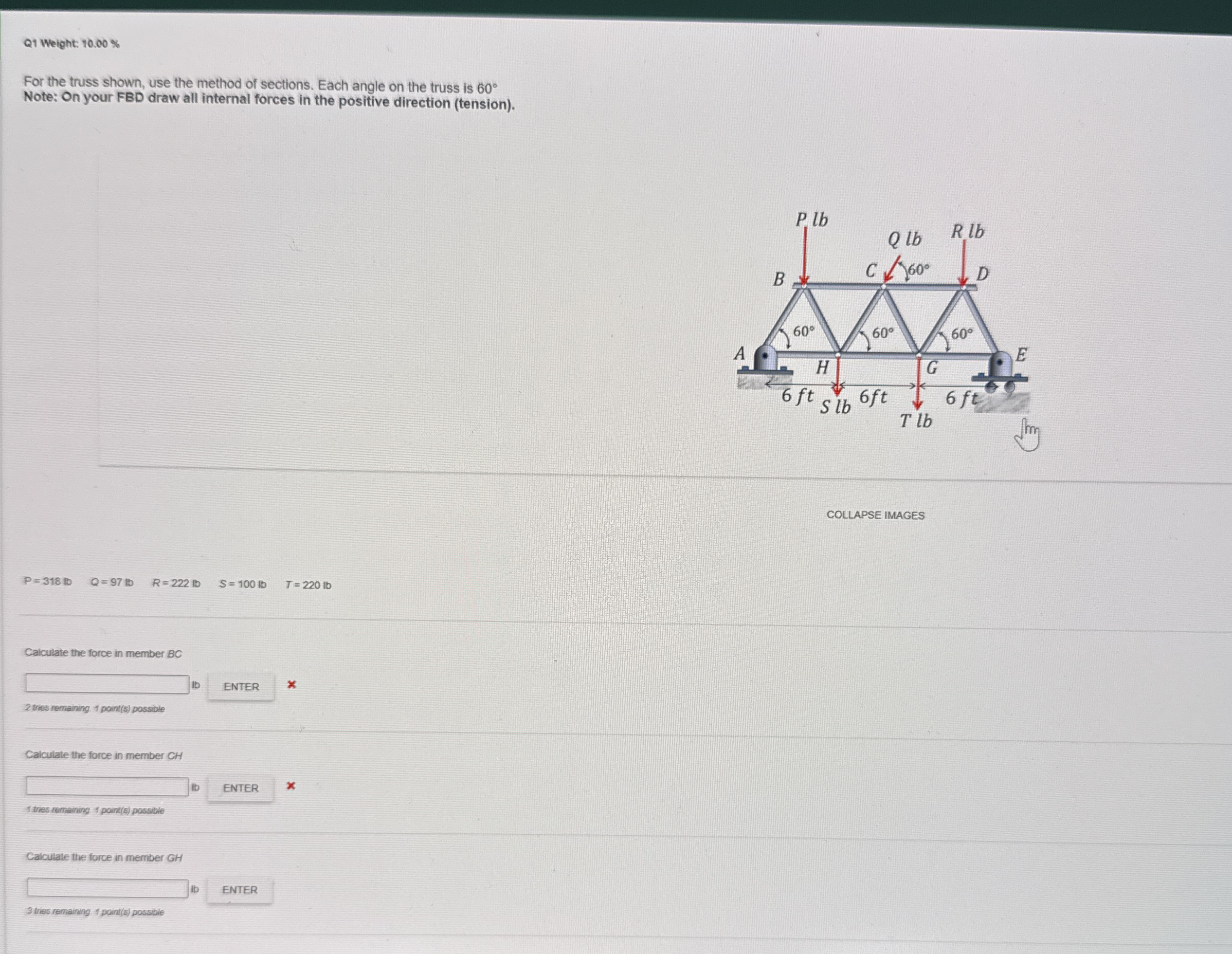

For the truss shown, use the method of sections. Each angle on the truss is $60$ Note: On your FBD draw all internal forces in the positive direction $($tension$).$

COLLAPSE IMAGES

$P=318ib,Q=97ib,R=222ib,S=100lb,T=220ib$

Calculate the force in member BC

$$

$2$ tres remaining. $1$ point$($s$)$ possible

Calculate the force in member CH

$10$ ENTER

$1$ tres remaining $1$ point$($s$)$ possible

Calculate the force in member GH

$$

$3$ thes remaining $1$ point$($s$)$ possible
