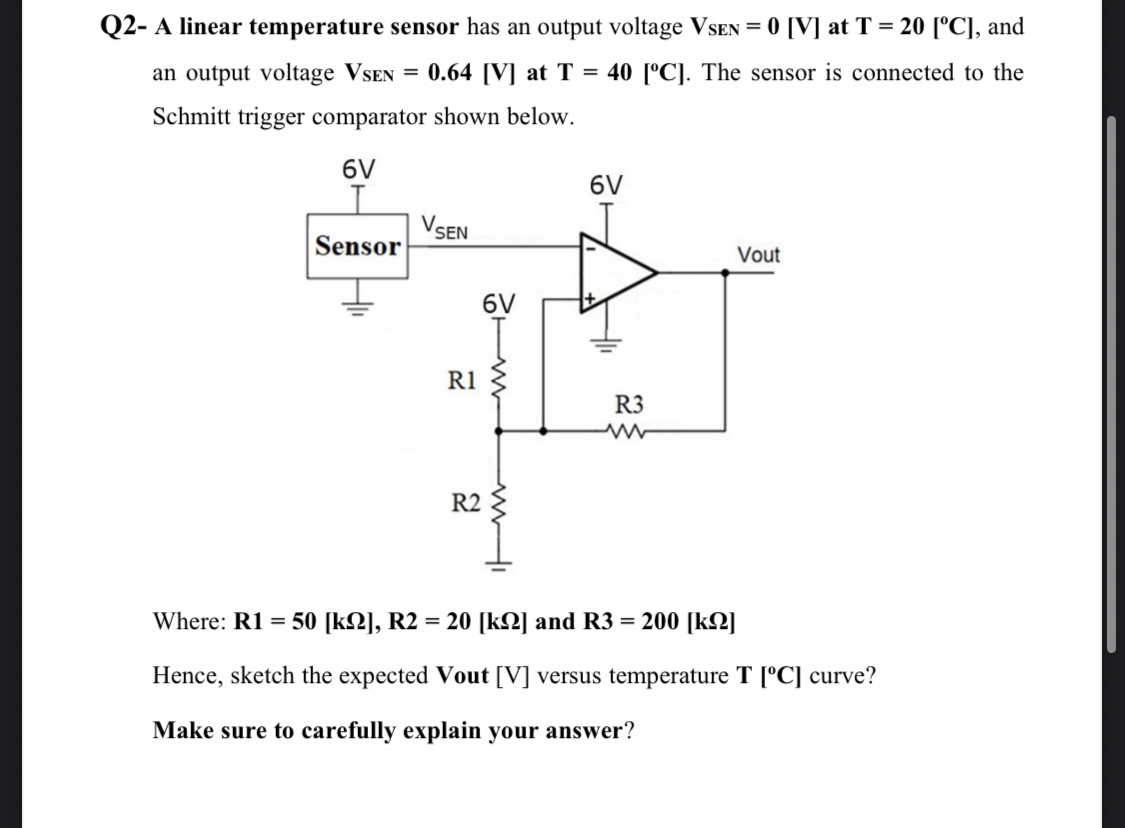

Q$2-$ A linear temperature sensor has an output voltage $V_{\text{S}\text{E}\text{N}}=0[V]$ at $T=20[C],$ and an output voltage $V_{\text{S}\text{E}\text{N}}=0\mathrm{.}64[V]$ at $T=40[C].$ The sensor is connected to the Schmitt trigger comparator shown below.

Where: $R1=50[k],R2=20[k]$ and $R3=200[k]$

Hence, sketch the expected Vout $[$V$]$ versus temperature T $[C]$ curve?

Make sure to carefully explain your answer?
