Q$2$

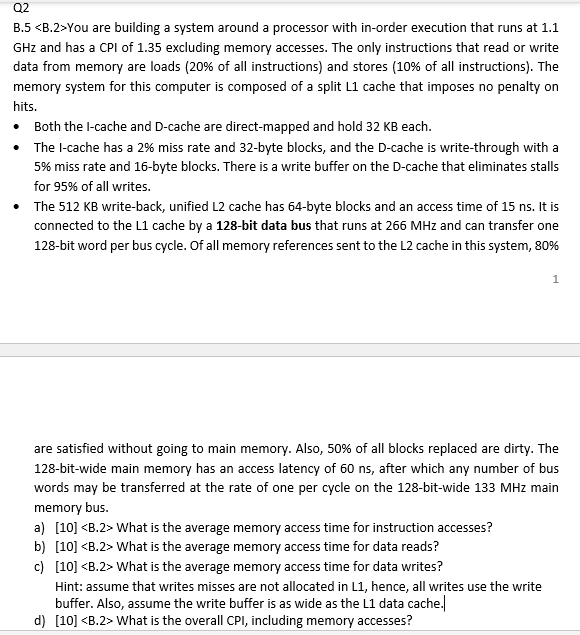

B$.5$ B$.2>$ You are building a system around a processor with in$-$order execution that runs at $1\mathrm{.}1$

GHz and has a CPI of $1\mathrm{.}35$ excluding memory accesses. The only instructions that read or write

data from memory are loads $(20\%$ of all instructions$)$ and stores $(10\%$ of all instructions$).$ The

memory system for this computer is composed of a split L$1$ cache that imposes no penalty on

hits.

Both the I$-$cache and D$-$cache are direct$-$mapped and hold $32$ KB each.

The I$-$cache has a $2\%$ miss rate and $32-$byte blocks, and the D$-$cache is write$-$through with a

$5\%$ miss rate and $16-$byte blocks. There is a write buffer on the D$-$cache that eliminates stalls

for $95\%$ of all writes.

The $512$ KB write$-$back, unified L$2$ cache has $64-$byte blocks and an access time of $15$ ns $.$ It is

connected to the L$1$ cache by a $128-$bit data bus that runs at $266$ MHz and can transfer one

$128-$bit word per bus cycle. Of all memory references sent to the L$2$ cache in this system, $80\%$

are satisfied without going to main memory. Also, $50\%$ of all blocks replaced are dirty. The

$128-$bit$-$wide main memory has an access latency of $60$ ns $,$ after which any number of bus

words may be transferred at the rate of one per cycle on the $128-$bit$-$wide $133$ MHz main

memory bus.

a
