Question: Q 2 - Statically indeterminate torsion ( 2 5 points ) A statically indeterminate stepped compound solid shaft ACB is fixed at ends A and

Q2- Statically indeterminate torsion (25 points)

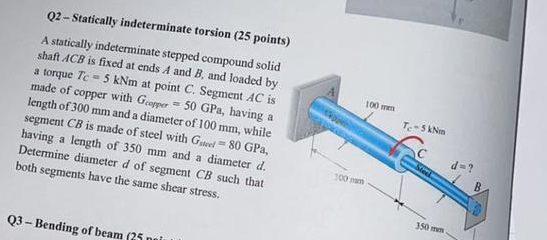

A statically indeterminate stepped compound solid shaft ACB is fixed at ends A and B, and loaded by a torque TC=5kNm at point C. Segment AC is made of copper with Gcepper=50GPa, having a length of 300 mm and a diameter of 100 mm , while segment CB is made of steel with Gthel=80GPa, having a length of 350 mm and a diameter d. Determine diameter d of segment CB such that both segments have the same shear stress.
Q 2 - Statically indeterminate torsion ( 2 5

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
