Question: Q 4 b A double circuit three - phase line connects a single generator to a large network. The power corresponding to the limit of

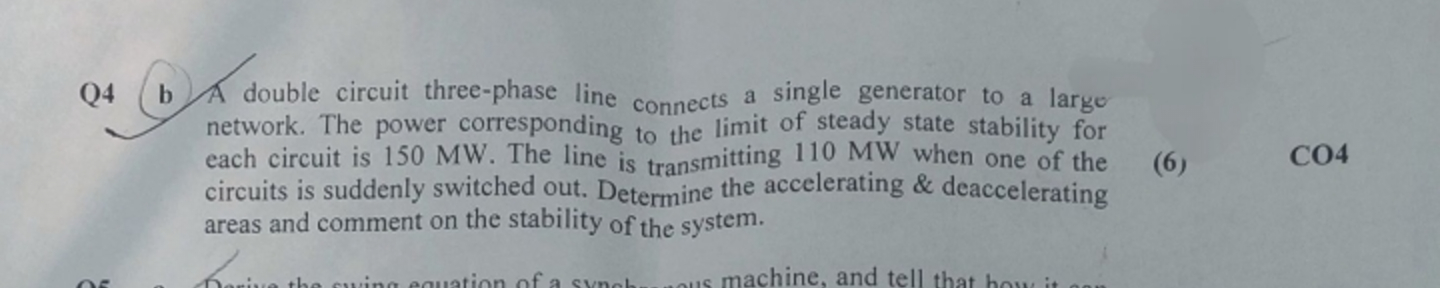

Q4 b A double circuit three-phase line connects a single generator to a large network. The power corresponding to the limit of steady state stability for each circuit is 150 MW . The line is transmitting 110 MW when one of the
(6)
CO 4 circuits is suddenly switched out. Determine the accelerating \& deaccelerating areas and comment on the stability of the system.
Q 4 b A double circuit three - phase line

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
