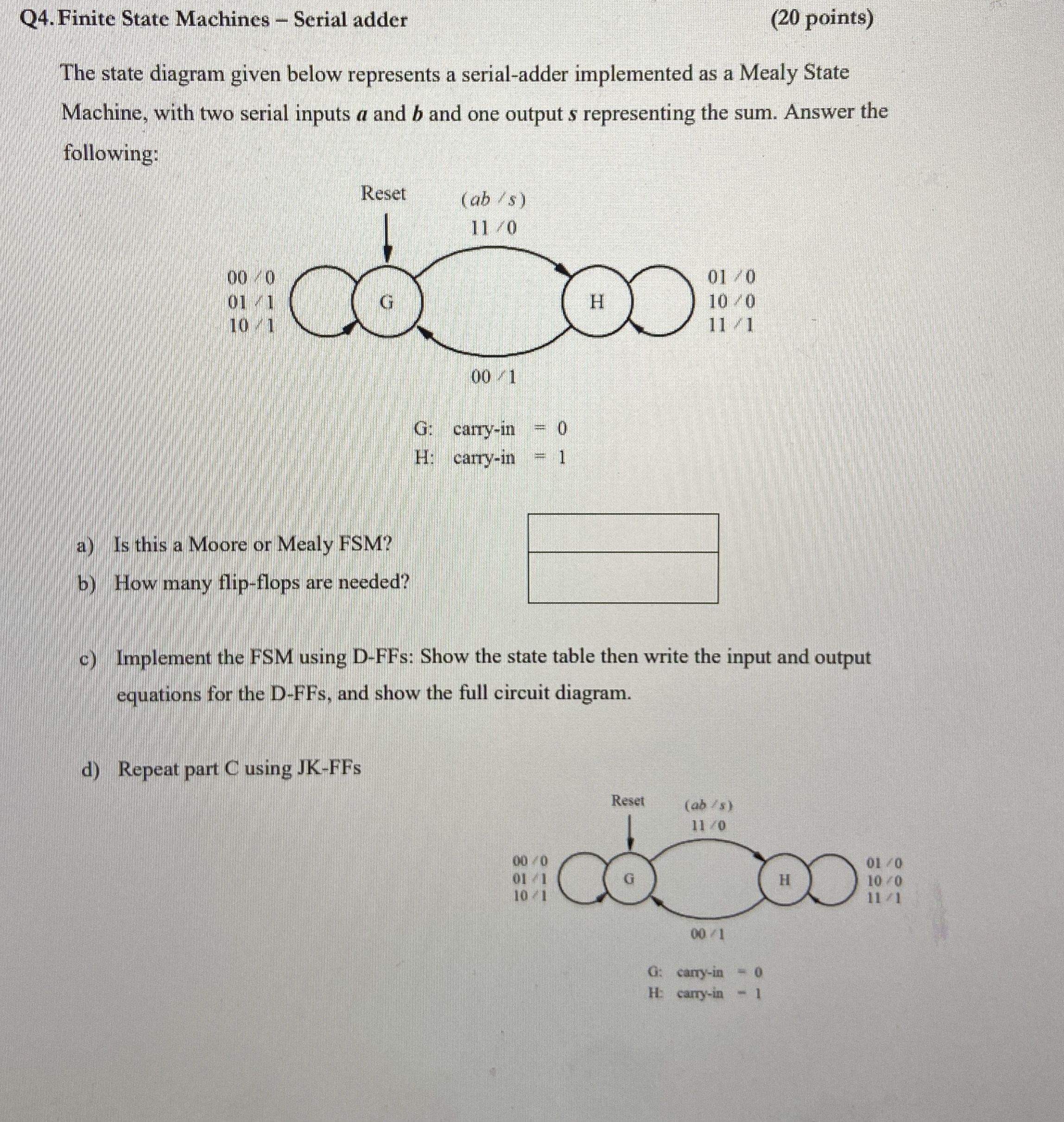

Q$4.$ Finite State Machines $-$ Serial adder

$(20$ points$)$

The state diagram given below represents a serial$-$adder implemented as a Mealy State Machine, with two serial inputs a and $b$ and one output $s$ representing the sum. Answer the following:

$G$: carry$-in=0$

$H$: carry$-in=1$

a$)$ Is this a Moore or Mealy FSM$?$

b$)$ How many flip$-$flops are needed?

c$)$ Implement the FSM using D$-$FFs: Show the state table then write the input and output equations for the D$-$FFs$,$ and show the full circuit diagram.

d$)$ Repeat part C using JK$-$FFs

$Q$: carry$-in=0$

$H$: carry$-in-1$
