Question: Q 5 . Given ? b a r ( y ) = 2 0 7 m m which locates the centroidal axis x ' for

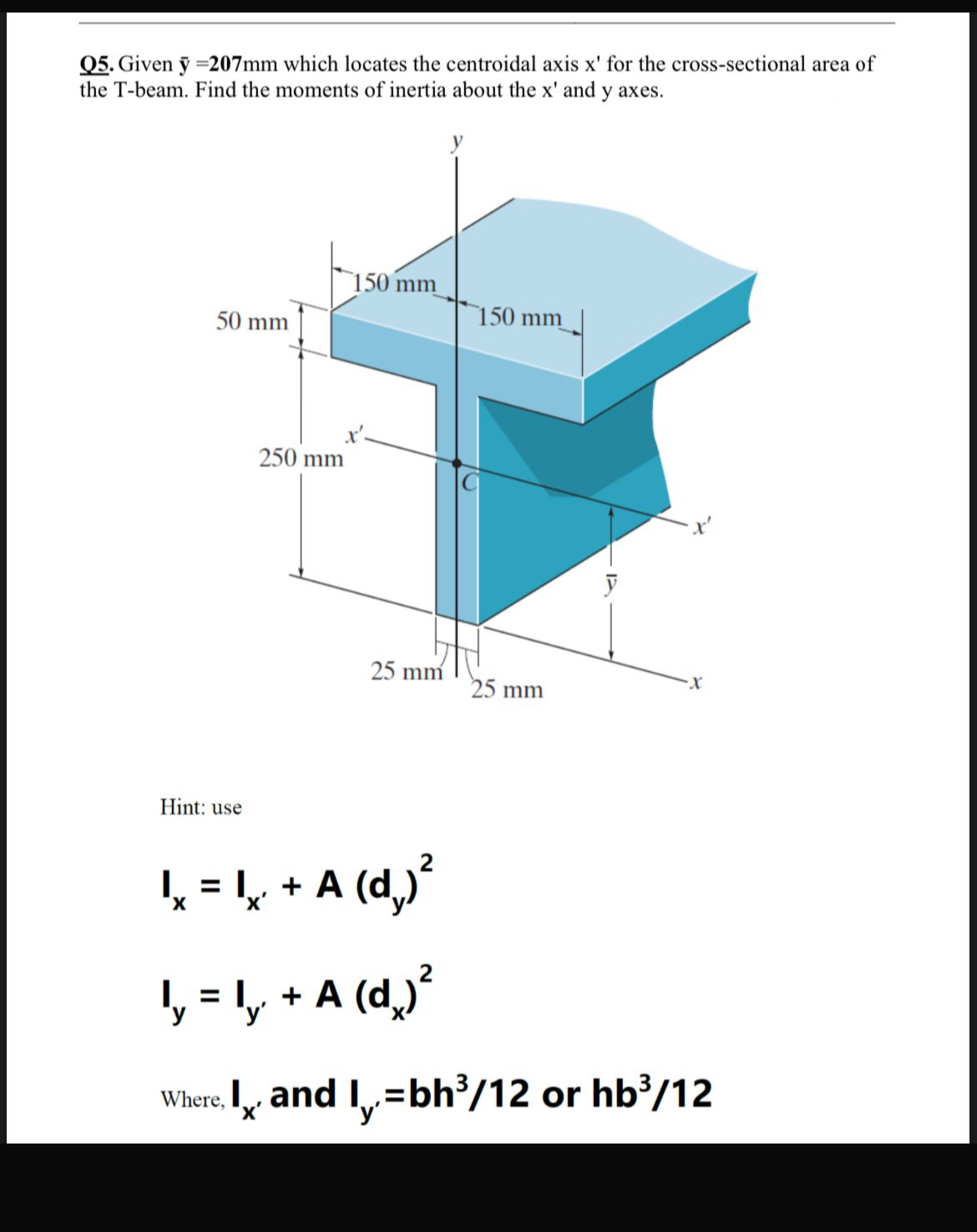

Q5. Given ?bar(y)=207mm which locates the centroidal axis x' for the cross-sectional area of the T-beam. Find the moments of inertia about the x' and y axes.
Hint: use
Ix=Ix'+A(dy)2
Iy=Iy'+A(dx)2
Where, Ix' and Iy'=bh312 or hb312
Q 5 . Given ? b a r ( y ) = 2 0 7 m m which
