Question: Q . 6 ( 1 0 % ) The column shown with a square cross - section is pinned at the bottom and supported by

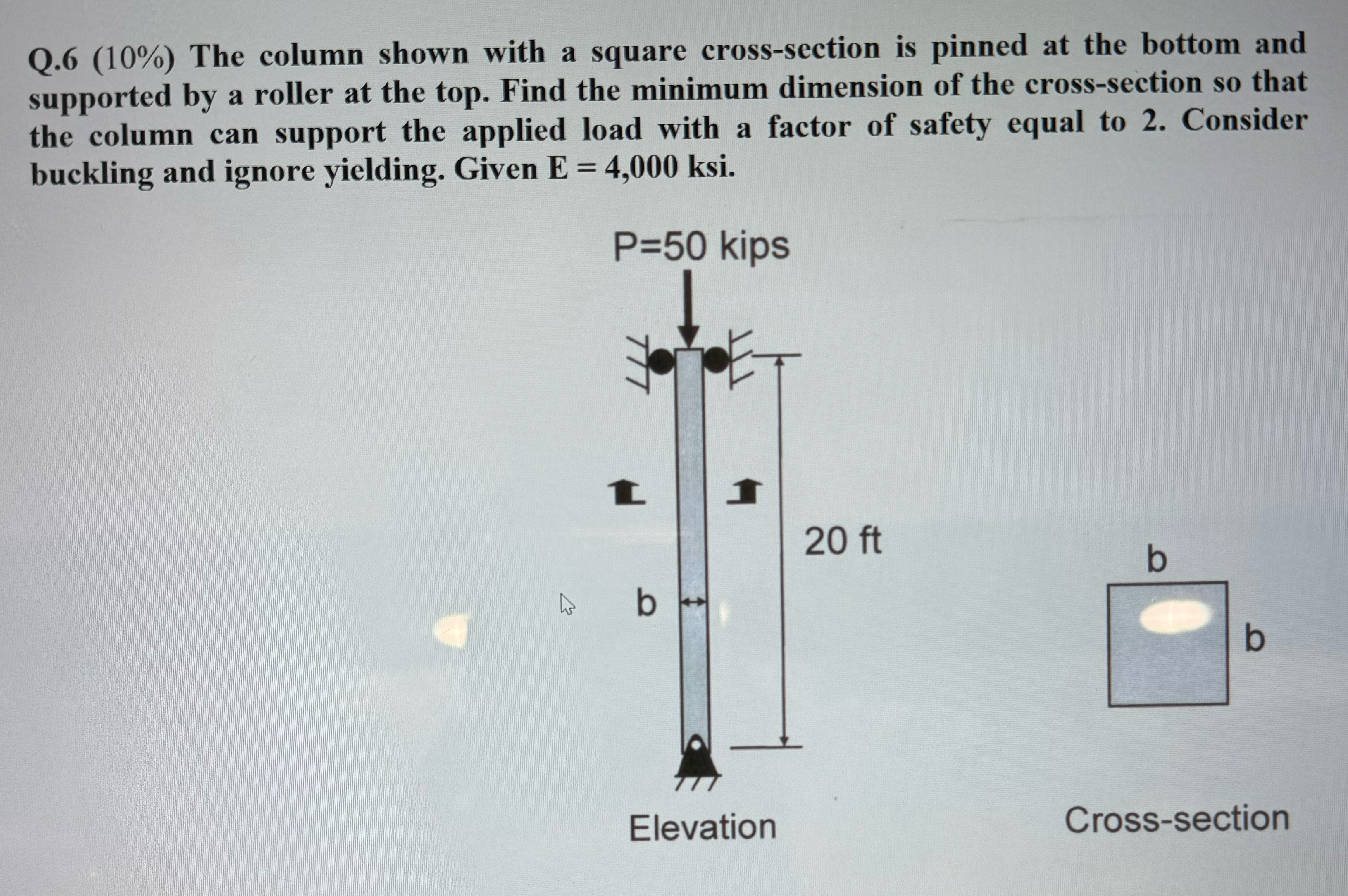

Q.6(10%) The column shown with a square cross-section is pinned at the bottom and supported by a roller at the top. Find the minimum dimension of the cross-section so that the column can support the applied load with a factor of safety equal to 2. Consider buckling and ignore yielding. Given E=4,000ksi.
b
b
Cross-section
Q . 6 ( 1 0 % ) The column shown with a square

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
