Question: Q 8 : The beam below is a W 1 8 x 7 1 wide flange steel section bent about its strong - axis. It

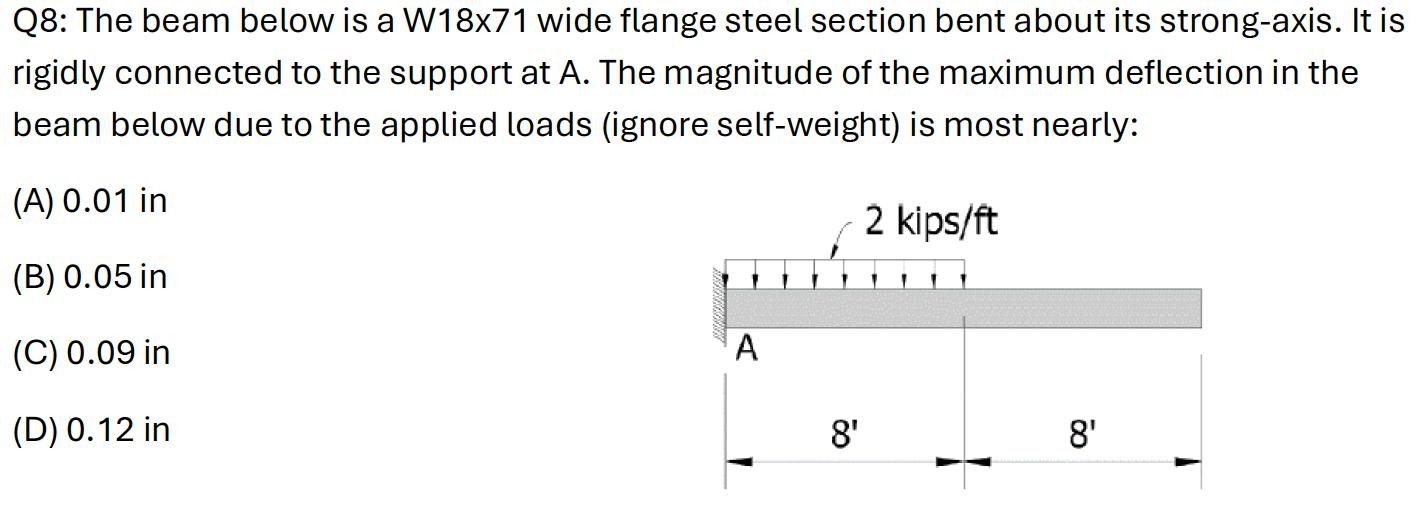

Q8: The beam below is a W18x71 wide flange steel section bent about its strong-axis. It is rigidly connected to the support at A. The magnitude of the maximum deflection in the beam below due to the applied loads (ignore self-weight) is most nearly:
(A)0.01 in
(B)0.05 in
(C)0.09 in
(D)0.12 in
Q 8 : The beam below is a W 1 8 x 7 1 wide flange
