Question: Q . 9 . Consider the system shown in figure - 1 . To improve the performance of the system a feedback loop is added

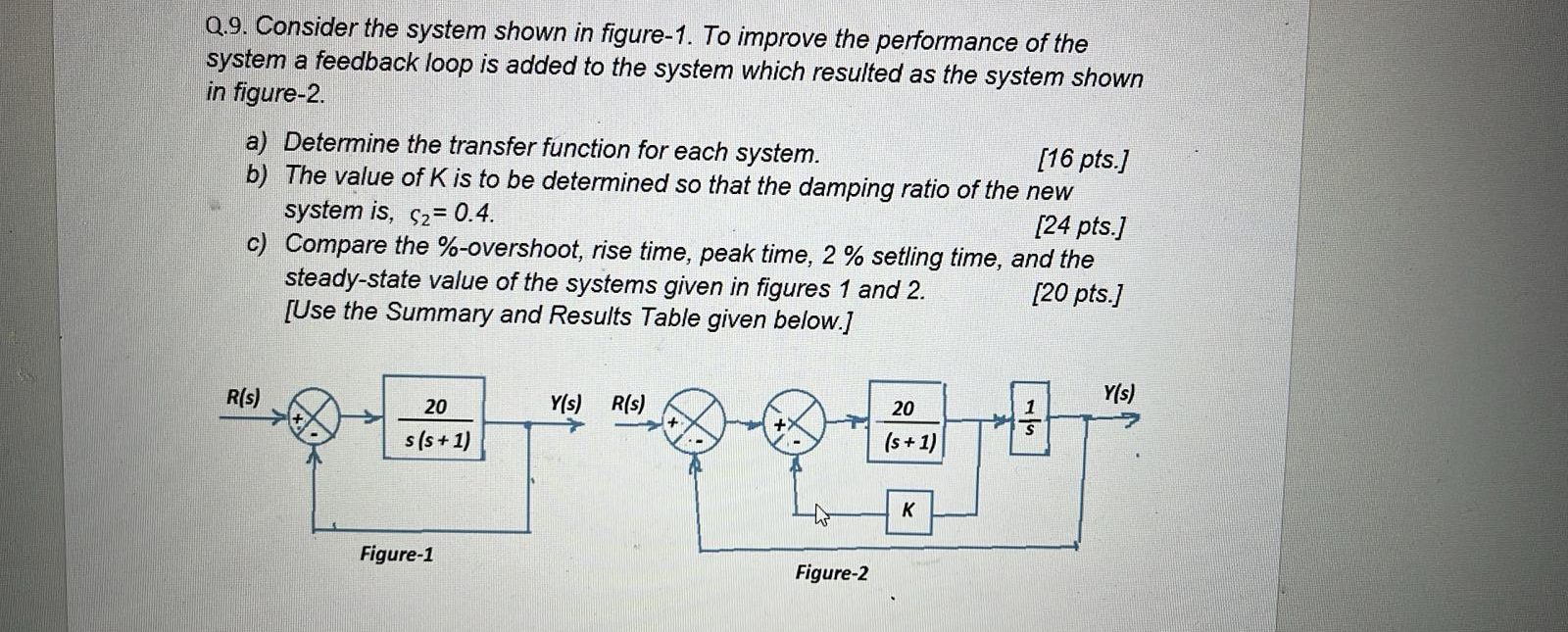

Q.9. Consider the system shown in figure-1. To improve the performance of the system a feedback loop is added to the system which resulted as the system shown in figure-2.
a) Determine the transfer function for each system.
b) The value of K is to be determined so that the damping ratio of the new system is,2=0.4.
[24 pts.]
c) Compare the %-overshoot, rise time, peak time, 2% setling time, and the steady-state value of the systems given in figures 1 and 2.[Use the Summary and Results Table given below.]
[20 pts.]
Figure-1
Figure-2
