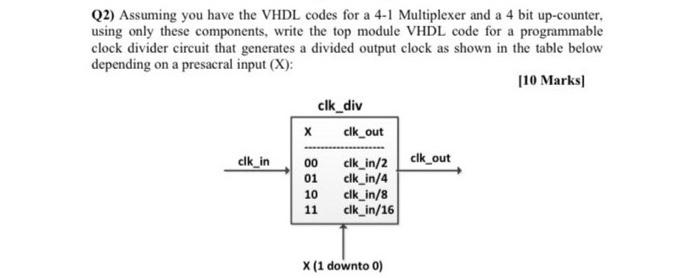

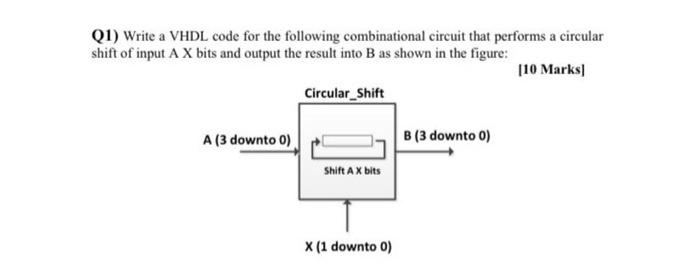

Q1) Write a VHDL code for the following combinational circuit that performs a circular shift of input A X bits and output the result into B as shown in the figure: [10 Marks Circular_Shift A (3 downto 0) B(3 downto 0) Shift AX bits X (1 downto 0) Q2) Assuming you have the VHDL codes for a 4-1 Multiplexer and a 4 bit up-counter, using only these components, write the top module VHDL code for a programmable clock divider circuit that generates a divided output clock as shown in the table below depending on a presacral input (X): [10 Marks] cik_div X clk_out clk_in 00 01 clk_in/4 10 clk_in/8 11 clk_in/16 clk_in/ 2clk_out X(1 downto 0)
