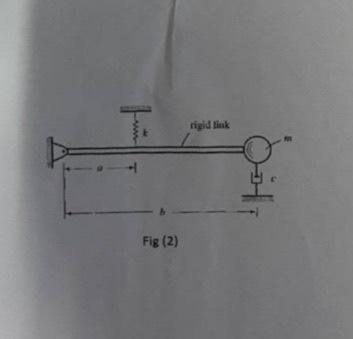

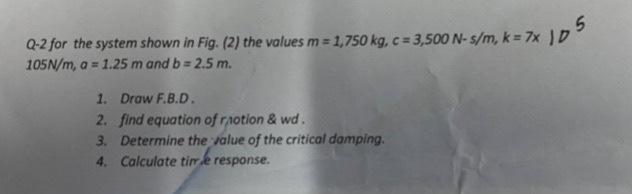

Question: Q-2 for the system shown in Fig. (2) the values m=1,750kg,c=3,500Ns/m,k=7xD5 105N/m,a=1.25m and b=2.5m. 1. Draw F.B.D. 2. find equation of riotion & wd. 3.

Q-2 for the system shown in Fig. (2) the values m=1,750kg,c=3,500Ns/m,k=7xD5 105N/m,a=1.25m and b=2.5m. 1. Draw F.B.D. 2. find equation of riotion & wd. 3. Determine the value of the critical damping. 4. Calculate time response. Fig (2)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
