Question: Q.4) A machine part is subjected to four forces and three couple moments as shown. The part is to be held in place by a

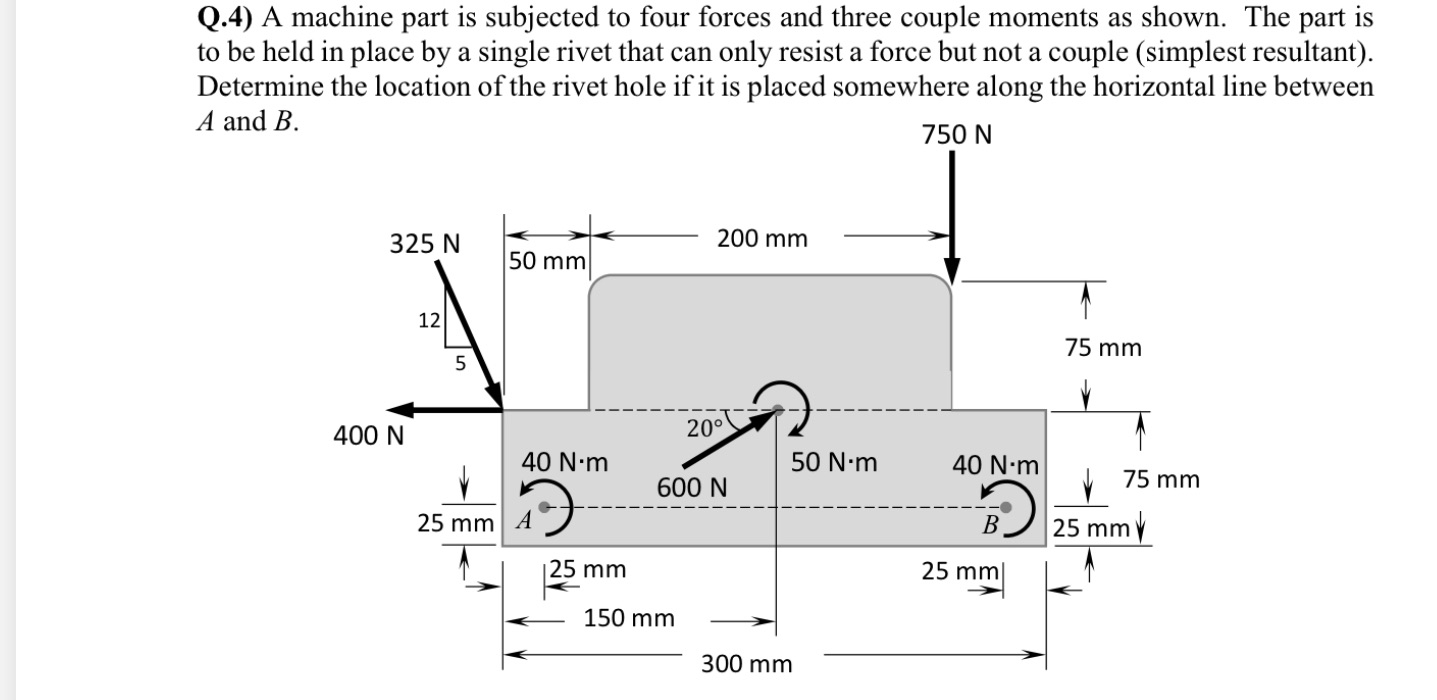

Q.4) A machine part is subjected to four forces and three couple moments as shown. The part is to be held in place by a single rivet that can only resist a force but not a couple (simplest resultant). Determine the location of the rivet hole if it is placed somewhere along the horizontal line between A and B. 750 N 200 mm 325 N 5'0 mm" \
