Question: Q5.Consider the below table for a project. Activity Immediate Predecessor A B B D A, C A E F E G E H G I

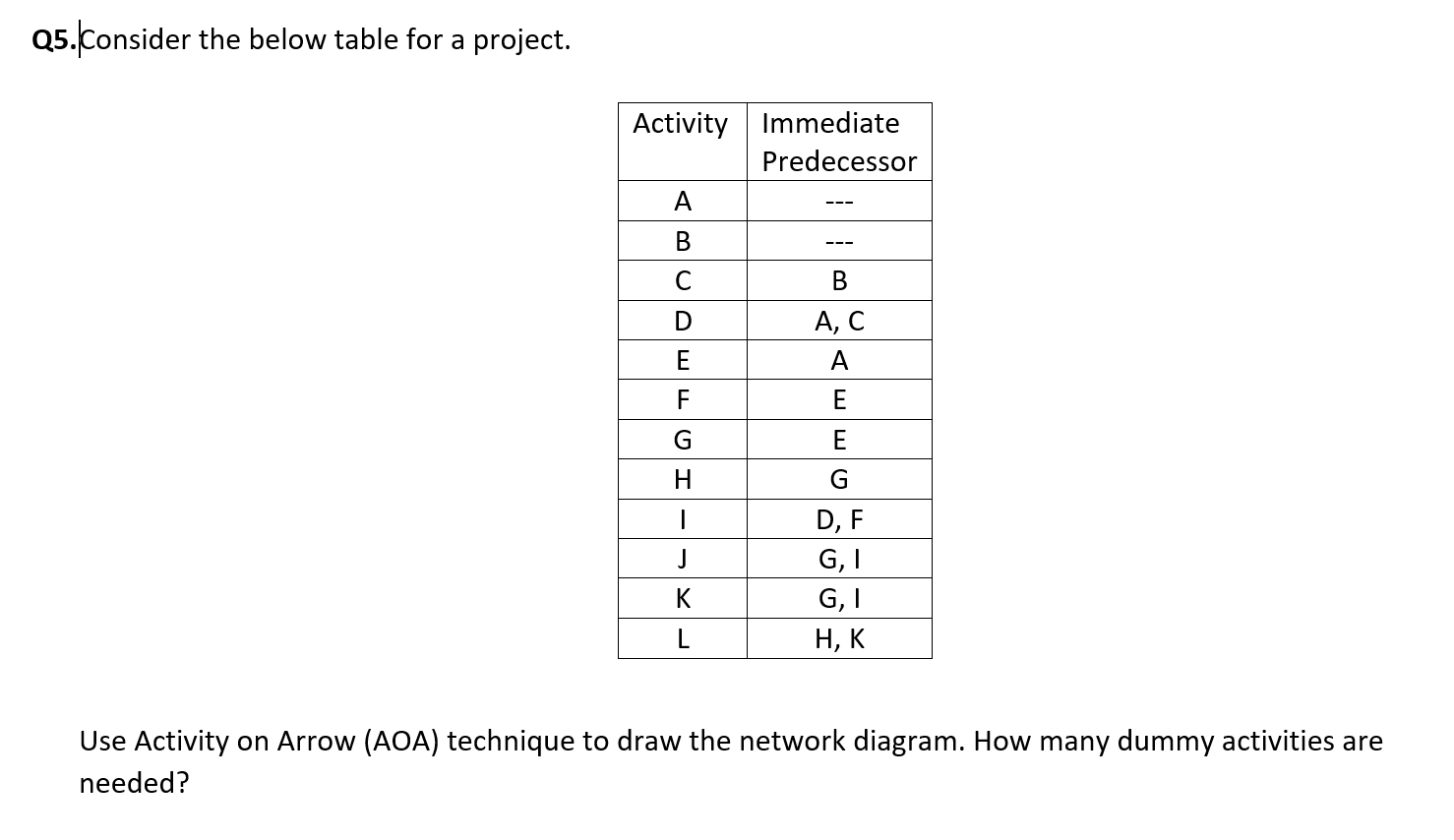

Q5.Consider the below table for a project.

Q5.Consider the below table for a project. Activity Immediate Predecessor A B B D A, C A E F E G E H G I J D, F GI GI H, K K L Use Activity on Arrow (AOA) technique to draw the network diagram. How many dummy activities are needed

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
