Question: Quention # 3 ( 1 0 Points ) ( CLO 3 ) For the shown truss, determine by inspection the members that are in Tension

Quention #3(10 Points)(CLO3)

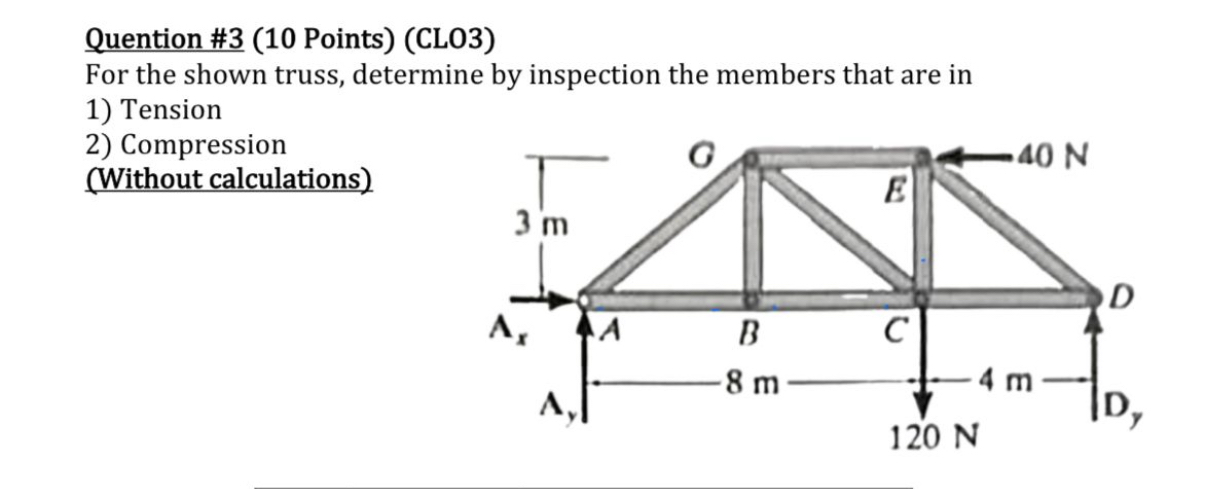

For the shown truss, determine by inspection the members that are in
Tension
Compression
(Without calculations)
