Question: Question 1 ( 1 point ) Use the method of joints to determine the force ( in k N ) in member B E of

Question

1 (1

point

)

Use the method of joints to determine the force

(

k N)

in member

B E

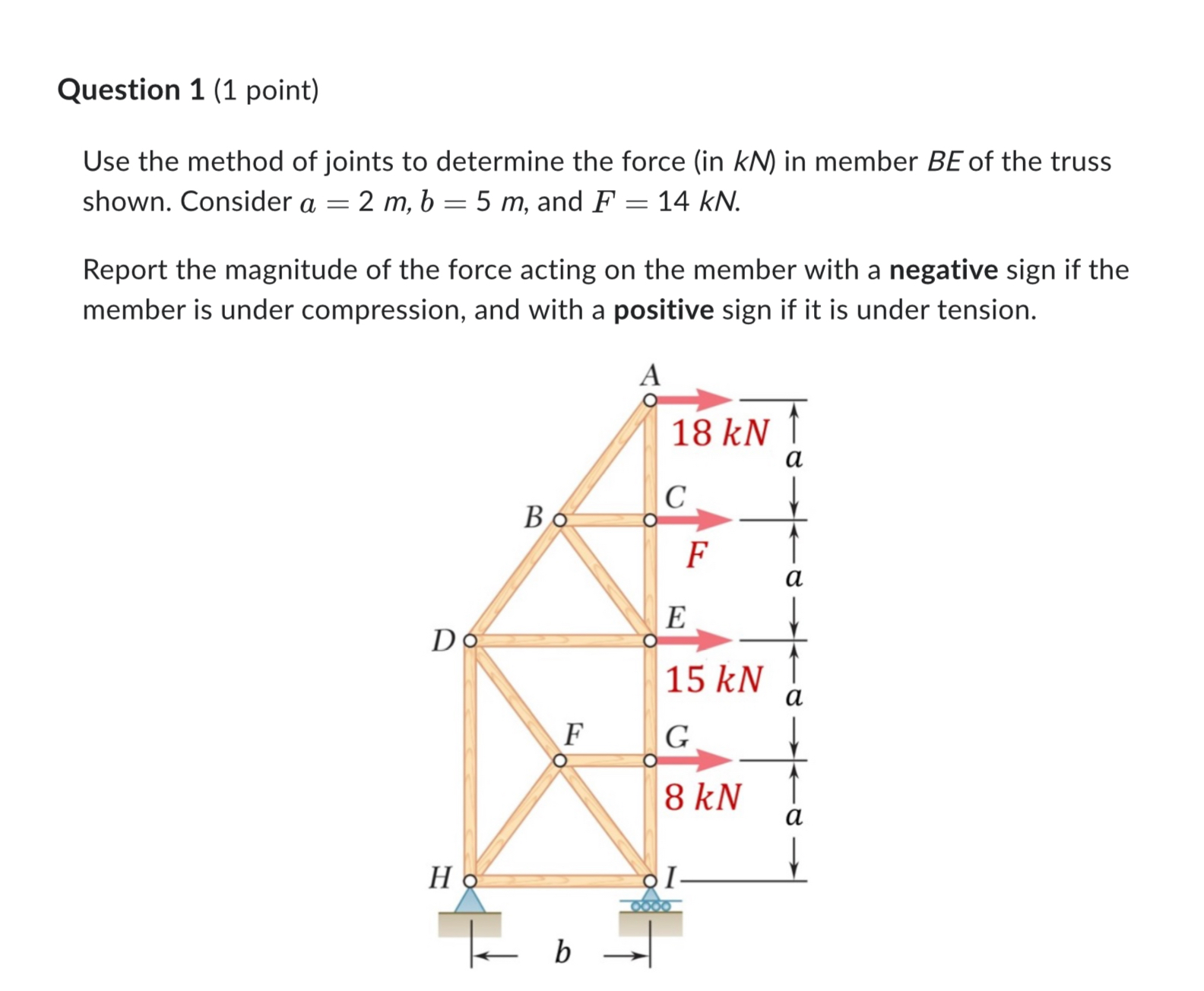

of the truss shown. Consider

a = 2 m, b = 5 m,

and

F = 14 k N .

Report the magnitude of the force acting on the member with a negative sign if the member is under compression, and with a positive sign if it is under tension.

Question 1 ( 1 point ) Use the method of joints

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Question 1 ( 1 point ) Use the method of joints to determine the force ( in k N ) in member B E of the truss shown. Consider a = 3 m , b = 5 m , and F = 9 k N . Report the magnitude of the force...

Question 1 ( 1 point ) Use the method of joints to determine the force ( in k M ) in member B E of the truss shown. Consider a = 4 m , b = 6 m , and F = 1 6 k N . Report the magnitude of the force...

Question 1 ( 1 point ) Use the method of joints to determine the force ( in k N ) in member B E of the truss shown. Consider a = 3 m , b = 6 m , and F = 1 5 k N . Report the magnitude of the force...

Question 1 ( 1 point ) Use the method of joints to determine the force ( in k M ) in member B E of the truss shown. Consider a = 3 m , b = 6 m , and F = 1 5 k N . Report the magnitude of the force...

Ascissors truss supports three forces at joints B, C, and D as shown in the figure below. The forces have magnitudes Fi 30 kip. F-15 kip, and F-5 kip. The truss is held in equilibrium by a pin at...

A scissors truss supports three forces at joints B , C , and D as shown in the figure below. The forces have magnitudes F 1 = 4 0 kip, F 2 = 3 5 kip, and F 3 = 2 0 kip. The truss is held in...

A scissors truss supports three forces at joints B , C , and D as shown in the figure below. The forces have magnitudes F 1 = 0 kip, F 2 = 1 5 kip, and F 3 = 4 5 kip. The truss is held in equilibrium...

The roof truss shown in Figure 1 has a pin support at A and a roller support at G . Each truss member can withstand a load of 5 0 0 0 N in compression and 1 0 , 0 0 0 N in tension. a ) List 2...

! Required information The truss shown has a socket support at point \ ( L \ ) , a roller at point \ ( K \ ) , and a cylindrical roller at point \ ( A \ ) that prevents motion in the \ ( x \ ) and \...

Consider the following truss with P = 1 0 0 l b , a = 1 2 i n , and b = 1 8 i n . 4 . Use the Method of Joints to determine the force carried by each member: Draw a FBD of EVERY joint, and then write...
