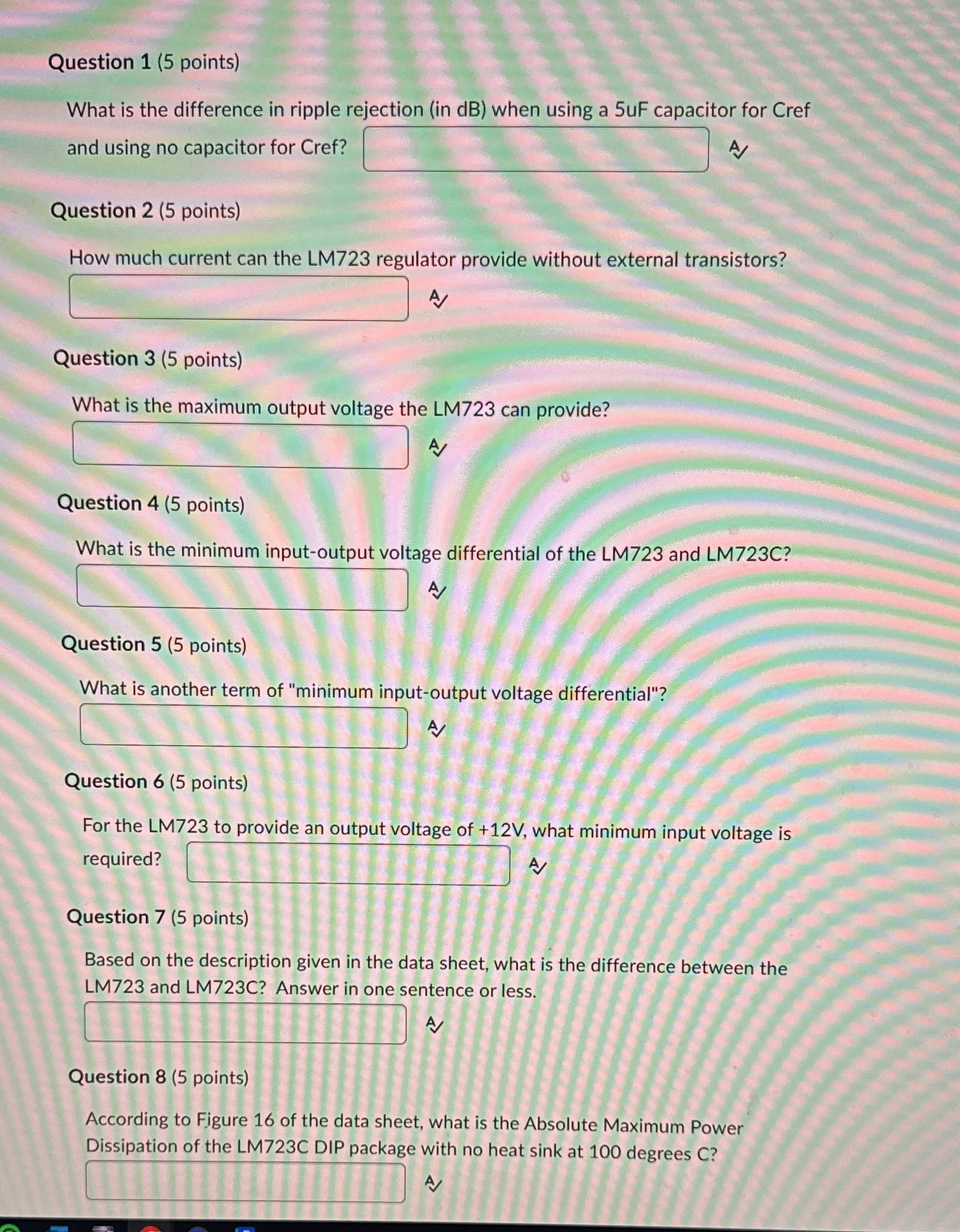

Question $1(5$ points$)$

What is the difference in ripple rejection $($in dB $)$ when using a $5$ uF capacitor for Cref and using no capacitor for Cref?

Question $2(5$ points$)$

How much current can the LM$723$ regulator provide without external transistors?

$$ A$)$

Question $3(5$ points$)$

What is the maximum output voltage the LM$723$ can provide?

$$

A$)$

Question $4(5$ points$)$

What is the minimum input$-$output voltage differential of the LM$723$ and LM$723$C$?$

$$ A$)$

Question $5(5$ points$)$

What is another term of "minimum input$-$output voltage differential"?

$$

Question $6(5$ points$)$

For the LM$723$ to provide an output voltage of $+12$ V $,$ what minimum input voltage is required? $$ A

Question $7(5$ points$)$

Based on the description given in the data sheet, what is the difference between the LM$723$ and LM$723$C$?$ Answer in one sentence or less.

$$

A

Question $8(5$ points$)$

According to Figure $16$ of the data sheet, what is the Absolute Maximum Power Dissipation of the LM$723$C DIP package with no heat sink at $100$ degrees C$?$

A
