Question: Question 1 Consider the cable system in Figure 1 that is connected to a wall. ( Diagram not to scala ) P Determine the following:

Question 1

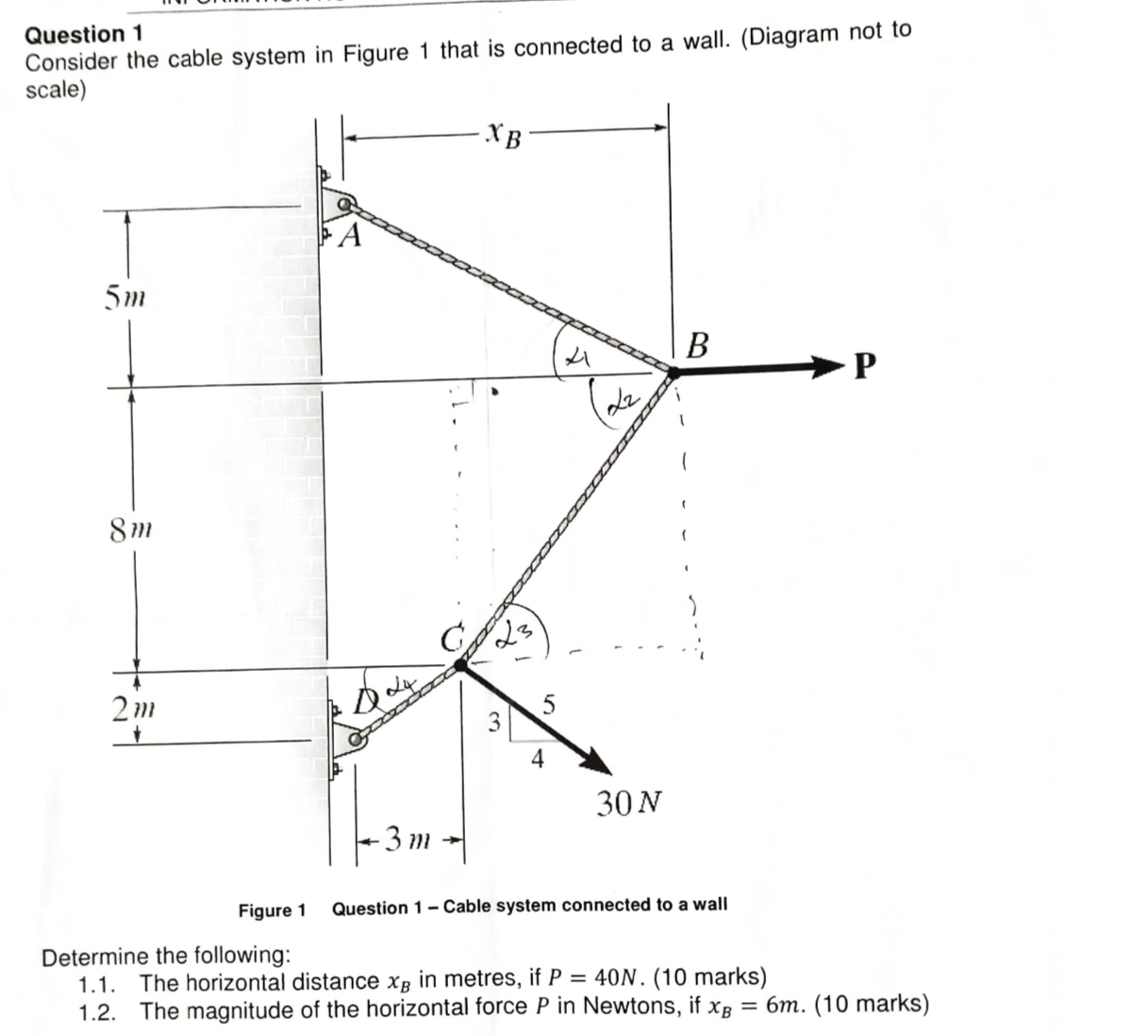

Consider the cable system in Figure 1 that is connected to a wall. (Diagram not to scala)
P
Determine the following:
1.1. The horizontal distance xB in metres, if P=40N.(10 marks)
1.2. The magnitude of the horizontal force P in Newtons, if xB=6m.(10 marks)
Question 1 Consider the cable system in Figure 1

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
