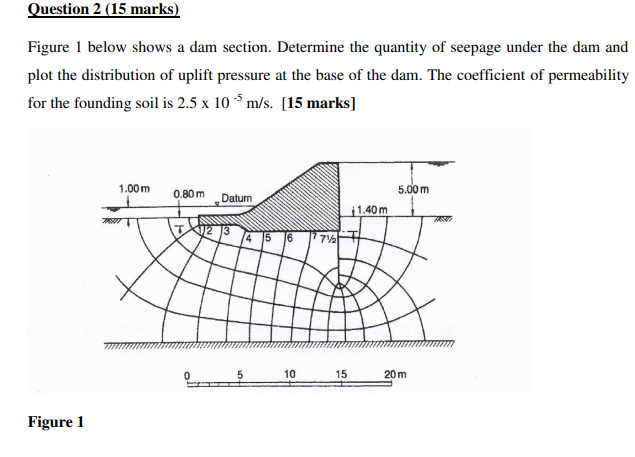

Question $2(15$ marks$)$

Figure $1$ below shows a dam section. Determine the quantity of seepage under the dam and

plot the distribution of uplift pressure at the base of the dam. The coefficient of permeability

for the founding soil is $2\mathrm{.}5{10}^{-5}\frac{m}{s}.[15$ marks$]$

Figure $1$
