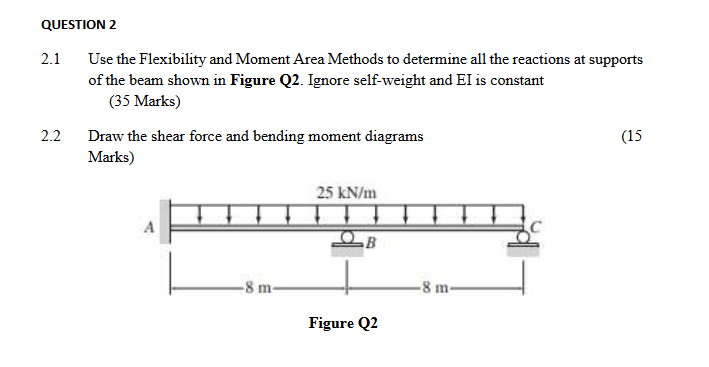

QUESTION $2$

$2\mathrm{.}1$ Use the Flexibility and Moment Area Methods to determine all the reactions at supports of the beam shown in Figure Q$2.$ Ignore self$-$weight and EI is constant

$(35$ Marks$)$

$2\mathrm{.}2$ Draw the shear force and bending moment diagrams

Marks$)$
