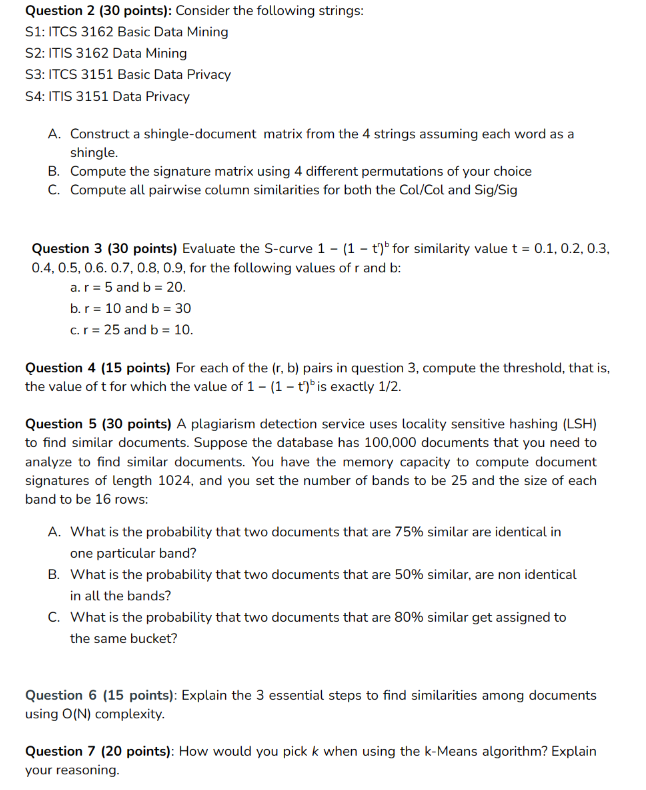

Question $2(30$ points$)$: Consider the following strings:

S$1$: ITCS $3162$ Basic Data Mining

S$2$: ITIS $3162$ Data Mining

S$3$: ITCS $3151$ Basic Data Privacy

S$4$: ITIS $3151$ Data Privacy

A$.$ Construct a shingle$-$document matrix from the $4$ strings assuming each word as a

shingle.

B$.$ Compute the signature matrix using $4$ different permutations of your choice

C$.$ Compute all pairwise column similarities for both the $Co\frac{l}{C}ol$ and $Si\frac{g}{S}ig$

Question $3(30$ points$)$ Evaluate the S$-$curve $1-(1-t^t{)}^b$ for similarity value $t=0\mathrm{.}1,0\mathrm{.}2,0\mathrm{.}3,$

$0\mathrm{.}4,0\mathrm{.}5,0\mathrm{.}6\mathrm{.}0\mathrm{.}7,0\mathrm{.}8,0\mathrm{.}9,$ for the following values of $r$ and $b$ :

a$.r=5$ and $b=20.$

b$.r=10$ and $b=30$

c$.r=25$ and $b=10.$

Question $4(15$ points$)$ For each of the $(r,$ b$)$ pairs in question $3,$ compute the threshold, that is$,$

the value of $t$ for which the value of $1-(1-t{)}^b$ is exactly $\frac{1}{2}.$

Question $5(30$ points$)$ A plagiarism detection service uses locality sensitive hashing $($LSH$)$

to find similar documents. Suppose the database has $100,000$ documents that you need to

analyze to find similar documents. You have the memory capacity to compute document

signatures of length $1024,$ and you set the number of bands to be $25$ and the size of each

band to be $16$ rows:

A$.$ What is the probability that two documents that are $75\%$ similar are identical in

one particular band?

B$.$ What is the probability that two documents that are $50\%$ similar, are non identical

in all the bands?

C$.$ What is the probability that two documents that are $80\%$ similar get assigned to

the same bucket?

Question $6(15$ points$)$: Explain the $3$ essential steps to find similarities among documents

using $O(N)$ complexity.

Question $7(20$ points$)$: How would you pick k when using the k$-$Means algorithm? Explain

your reasoning.
