Question: QUESTION 2: (30%) A planner identified for a certain project the activities listed in the table below and their precedence relationships as well as their

QUESTION 2: (30%) A planner identified for a

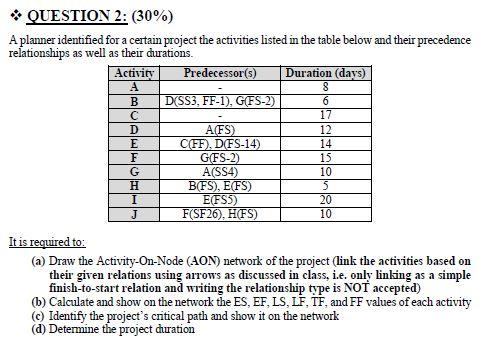

QUESTION 2: (30%) A planner identified for a certain project the activities listed in the table below and their precedence relationships as well as their durations. Activity Predecessor(s) Duration (days) D(SS3, FF-1), G(FS-2) B C D E F G H I J AFS) C(FF.D(FS-14) G(FS-2) A(SS4) B(FS), E(FS) E(FS5) F(SF26), H(FS) 8 6 17 12 14 15 10 5 20 10 It is required to: (a) Draw the Activity-On-Node (AON) network of the project (link the activities based on their given relations using arrows as discussed in class, i.e. only linking as a simple finish-to-start relation and writing the relationship type is NOT accepted) b) Calculate and show on the network the ES, EF, LS, LF, TF, and FF values of each activity Identify the project's critical path and show it on the network (d) Determine the project duration

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
