Question: Question (2): Answer for the following questions: (8 marks) Draw networks for the project and Gantt (Bar) chart with calculate times. Activity Predecessor Duration (days)

Question (2): Answer for the following questions:

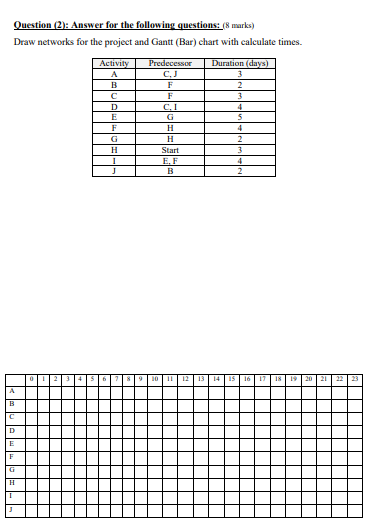

Question (2): Answer for the following questions: (8 marks) Draw networks for the project and Gantt (Bar) chart with calculate times. Activity Predecessor Duration (days) A C,J 3 B F 2 F 3 D C, I 4 E G 5 F H 4 G H 2 H Start 3 I E, F 4 J B 2 9 10 11 12 13 14 15 16 17 18 A B D E F G H I 19 20 21 22 23

Step by Step Solution

There are 3 Steps involved in it
