Question: Question 2- Exercises 15 points each question 1 Design a 3-bit binary-weighted DAC with a range of 0 to +3.3V using resistors. 2 An embedded

Question 2- Exercises 15 points each question 1 Design a 3-bit

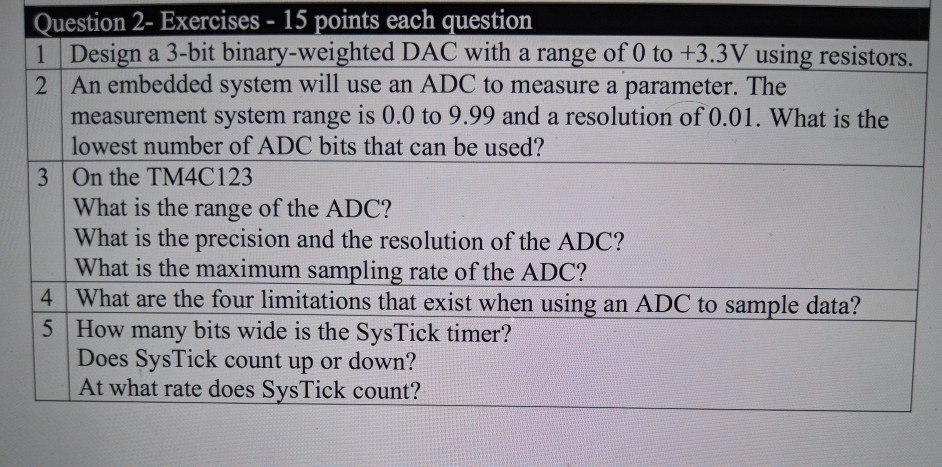

Question 2- Exercises 15 points each question 1 Design a 3-bit binary-weighted DAC with a range of 0 to +3.3V using resistors. 2 An embedded system will use an ADC to measure a parameter. The measurement system range is 0.0 to 9.99 and a resolution of 0.01. What is the lowest number of ADC bits that can be used? 3 On the TM4C123 What is the range of the ADC? What is the precision and the resolution of the ADC? What is the maximum sampling rate of the ADC? 4 What are the four limitations that exist when using an ADC to sample data? 5 How many bits wide is the SysTick timer? Does SysTick count up or down? At what rate does SysTick count
