Question: Question 2 - Frame ( 1 0 points ) Determine the pin reactions at A , B , and C of the simple bracket. Neglect

Question 2- Frame (10 points)

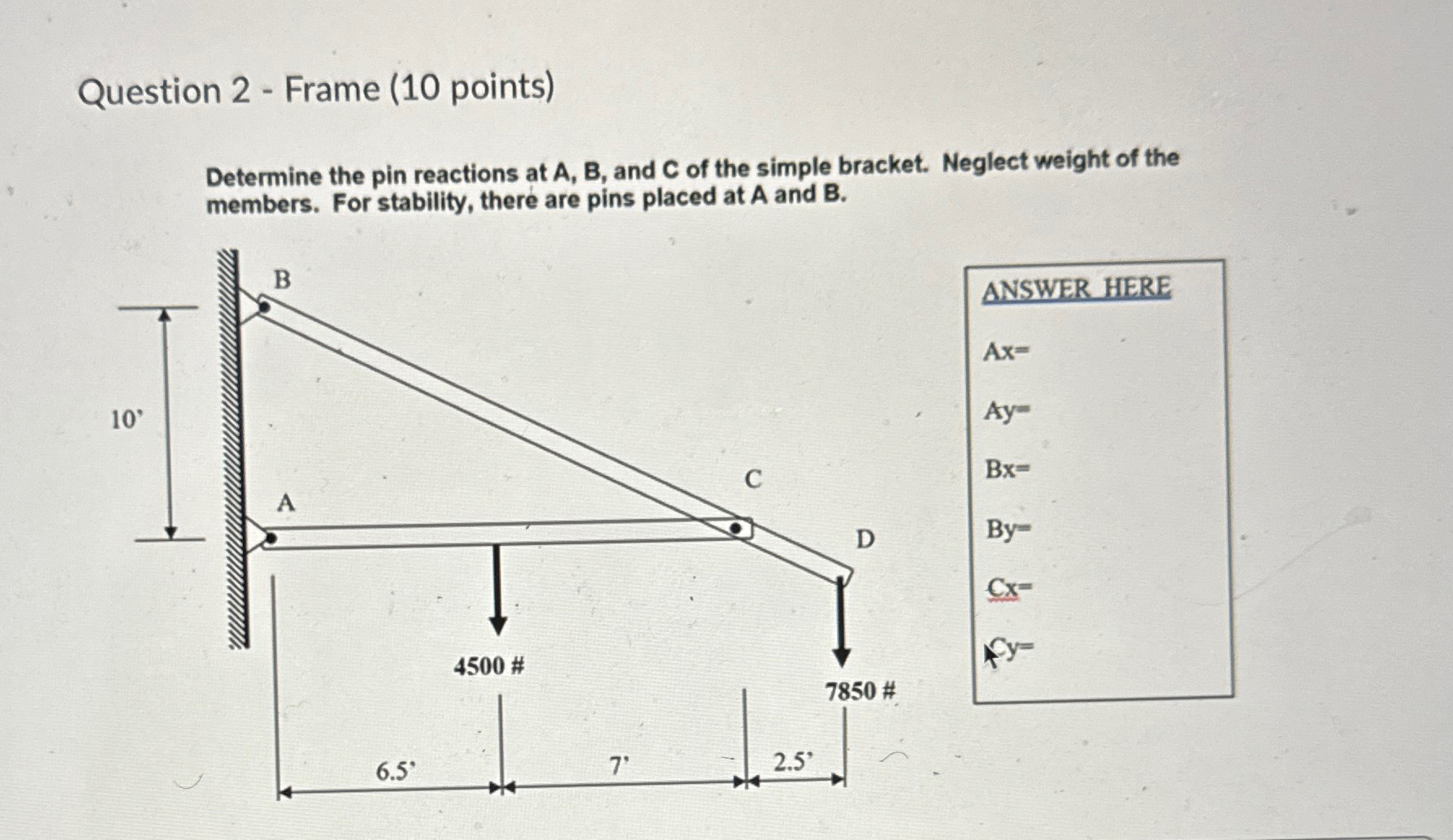

Determine the pin reactions at A,B, and C of the simple bracket. Neglect weight of the members. For stability, there are pins placed at A and B.
\table[[ANSWER HERE],[Ax=
Question 2 - Frame ( 1 0 points ) Determine the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
