Question: The following transfer function has been identified for a system: 11.5 G(s) 0.5s2 + 0.25s + 1 2.1. Determine Kp,, and t 2.2. Is

The following transfer function has been identified for a system: 11.5 G(s)

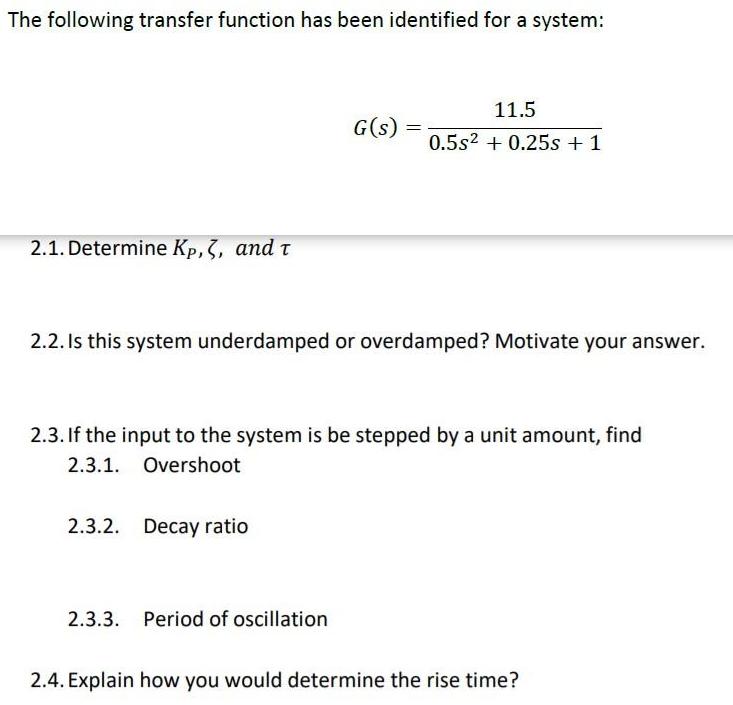

The following transfer function has been identified for a system: 11.5 G(s) 0.5s2 + 0.25s + 1 2.1. Determine Kp,, and t 2.2. Is this system underdamped or overdamped? Motivate your answer. 2.3. If the input to the system is be stepped by a unit amount, find 2.3.1. Overshoot 2.3.2. Decay ratio 2.3.3. Period of oscillation 2.4. Explain how you would determine the rise time?

Step by Step Solution

★★★★★

3.36 Rating (146 Votes )

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Document Format (2 attachments)

6365c1c4bbccd_240644.pdf

180 KBs PDF File

6365c1c4bbccd_240644.docx

120 KBs Word File
