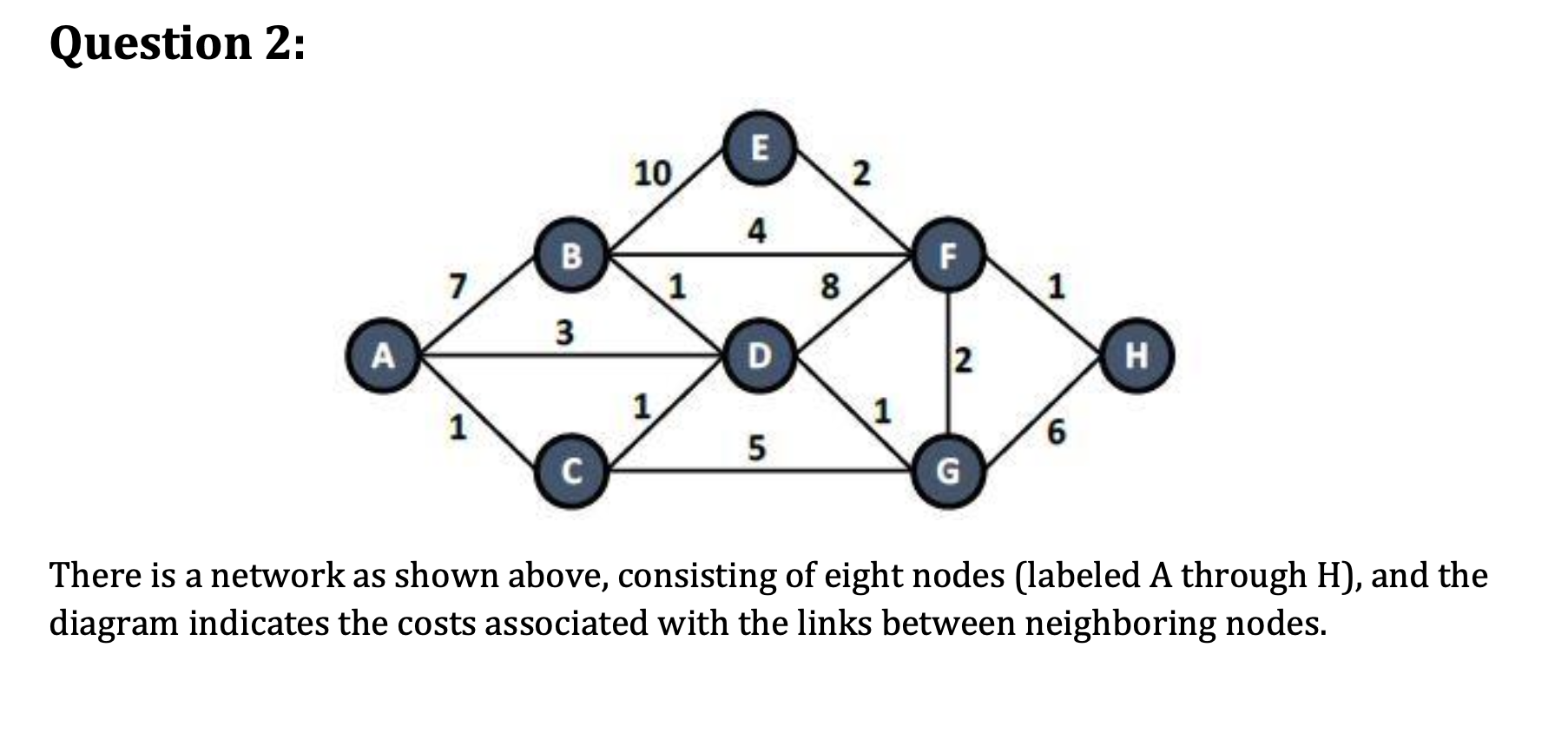

Question $2$ : There is a network as shown above, consisting of eight nodes $($ labeled A through H $),$and the diagram indicates the costs associated with the links between neighbouring nodes.

a $)$Use Dijkstra's link $-$ state routing algorithm to determine the shortest paths from node A to all other nodes $(10$points $)$and complete the routing table for node A $$as follows $(10$points $).$

b $)$Use Dijkstra's link $-$ state routing algorithm to determine the shortest paths from node E $$to all other nodes $(10$points $)$and complete the routing table for node E $$as follows $(10$points $).$

Note: You should show Dijkstra's table $($ page $14$of chapter $5).$You can draw it through any tool such as Microsoft Office tools or draw it on paper and attach its image. Hint: "Next Hop" refers to next router $($ first hop router $)$in the path between that router and destination. For instance, if node A wants to send a packet to destination G$,$this packet should be forwarded to node C first, so C will be the next Hop. "Overall cost" refers to the total cost from the source to the destination.
