Question: Question 2 Use a ruler to prepare the required FBDs to determine: a ) Reactions at supports A and B ( no decimal places )

Question 2

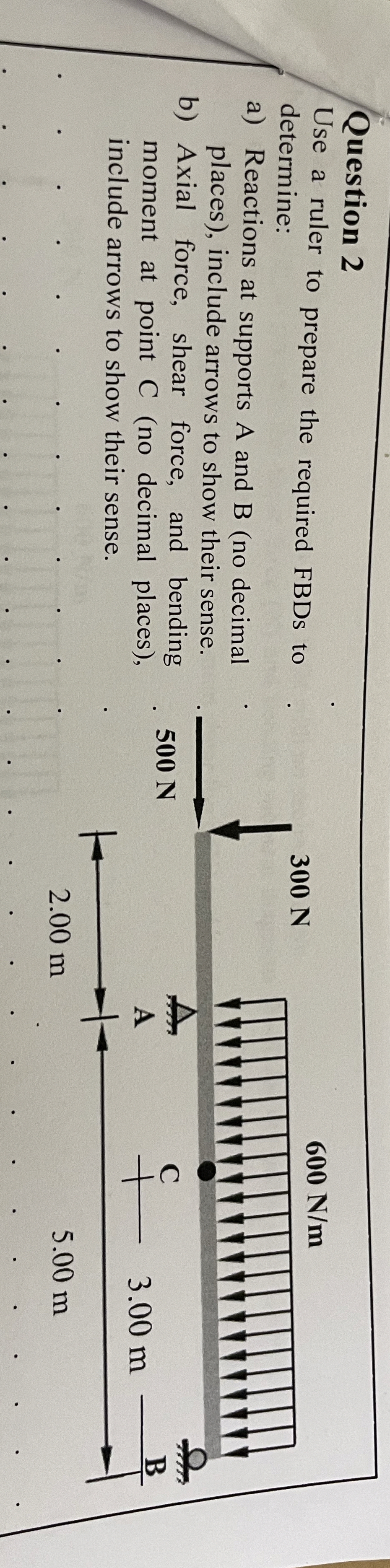

Use a ruler to prepare the required FBDs to determine:
a) Reactions at supports A and B(no decimal places), include arrows to show their sense.
b) Axial force, shear force, and bending moment at point C (no decimal places), include arrows to show their sense.
Question 2 Use a ruler to prepare the required

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
