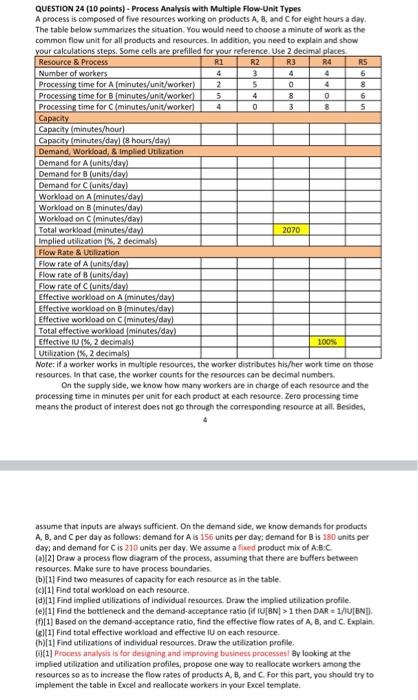

QUESTION 24 (10 points) - Process Analysis with Multiple Flow-Unit Types A process is composed of five resoutces working on products A, B, and C for eight hours a day. The tabie below summarizes the situation. You would need to choose a minute of work as the common flow unit for all products and resources. In addition, you need to explain and show On the supply side, we know how mamy workers are in charge of each resource and the processing time in minutes per unit for each product at each resource. Zero processing time means the product of interest does not go through the corresponding resource at all, Besides, 4 assume that inputs are ahways sufficient. On the demand side, we know demands for products A, B, and C per day as follows: demand for A is 156 units per day; demand for B is 18D units per doy: and demand for C is 210 units per day. We assume a fived product mix of A:B:C [a][2] Draw a process flow diagram of the process, assuming that there are buffers between resources. Make sure to have process boundaries. (b) [1] Find two measures of capacity fot each respurce as in the table. (c) [1] Find total workload on each resource. [d) [1] Find implied utilizations of individual resources. Draw the implied utilization profile. (f) [1] Based on the demand-acceptance ratio, find the effective flow rates of A, B, and C. Explain. [g]|1] Find total effective workload and effective IU on each resource. (h) [1] Find utilizations of individual rescurces, Draw the utilization profile. (i).1] Process analysis is for designing and improving business processesl By looking at the implied utilization and utilization profiles, propose one way to reallocate workers among the resources so as to increase the flow rates of products A, B, and C. For this part, you should try to implement the table in Excel and reallocate workers in your Excel template
