Question 3(20 marks)

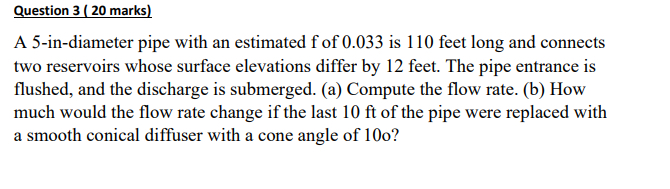

A 5-in-diameter pipe with an estimated f of 0.033 is 110 feet long and connects two reservoirs whose surface elevations differ by 12 feet. The pipe entrance is flushed, and the discharge is submerged. (a) Compute the flow rate. (b) How much would the flow rate change if the last 10 ft of the pipe were replaced with a smooth conical diffuser with a cone angle of 10 o ?
Question 3 ( 2 0 marks ) A 5 - in - diameter pipe
